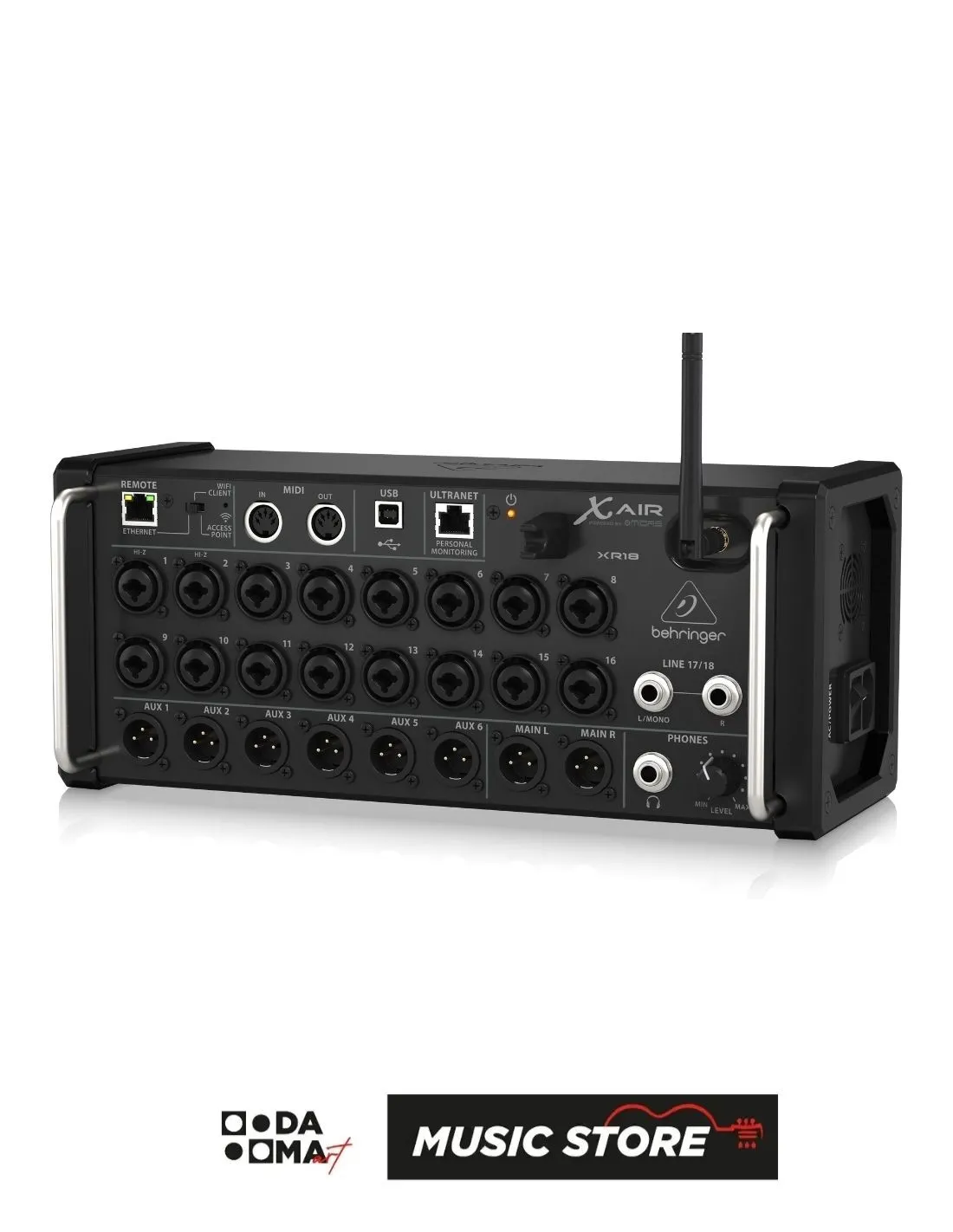

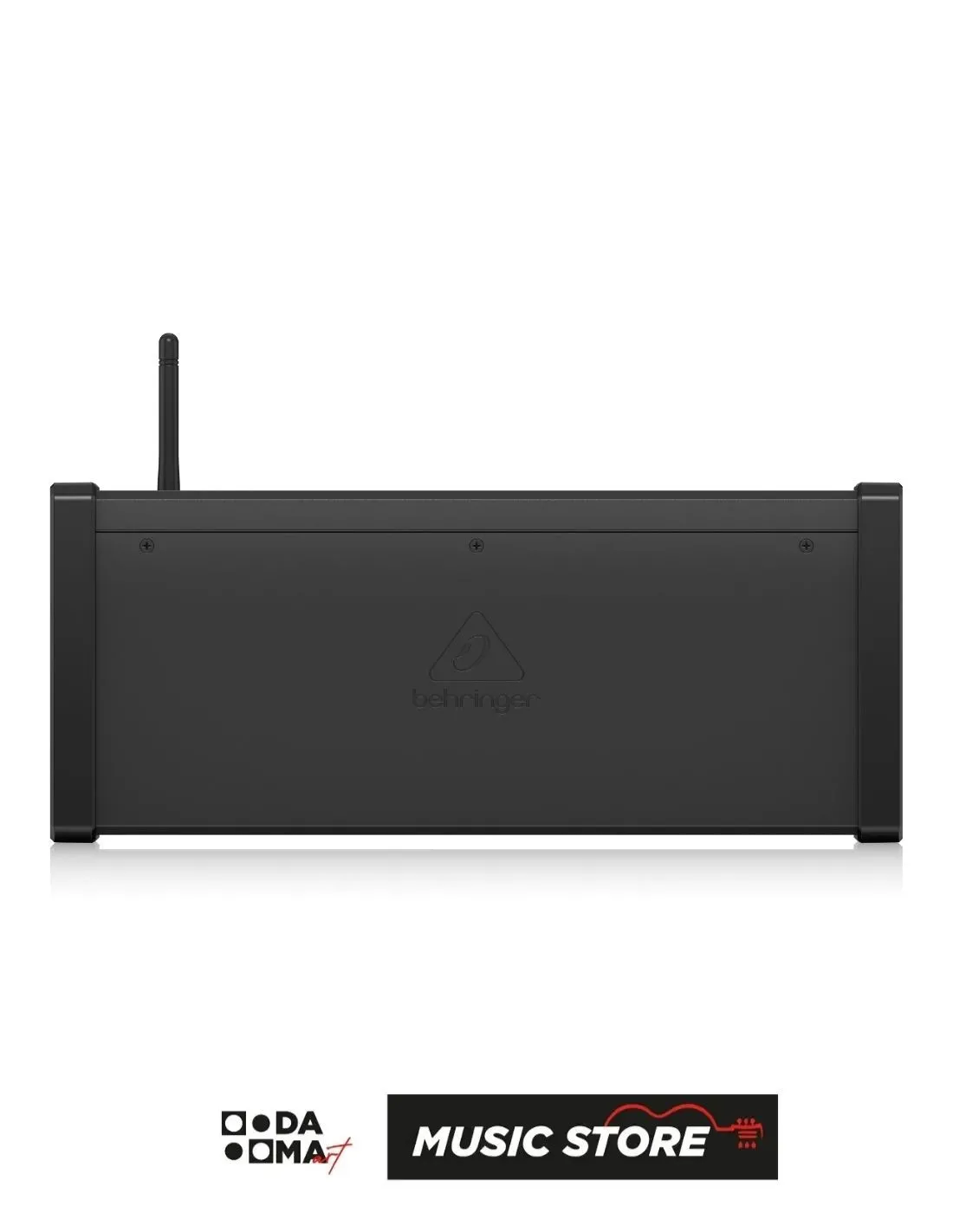

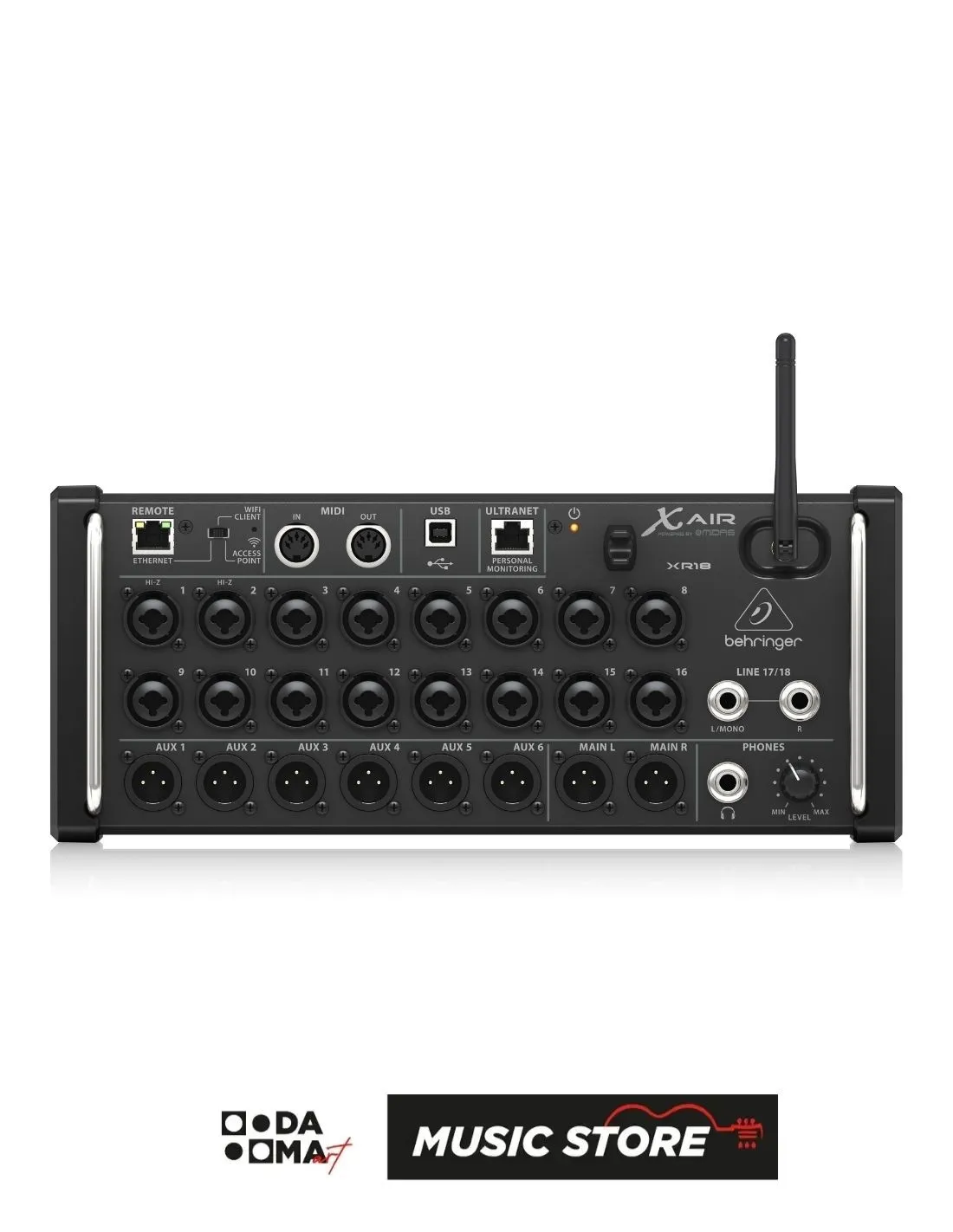

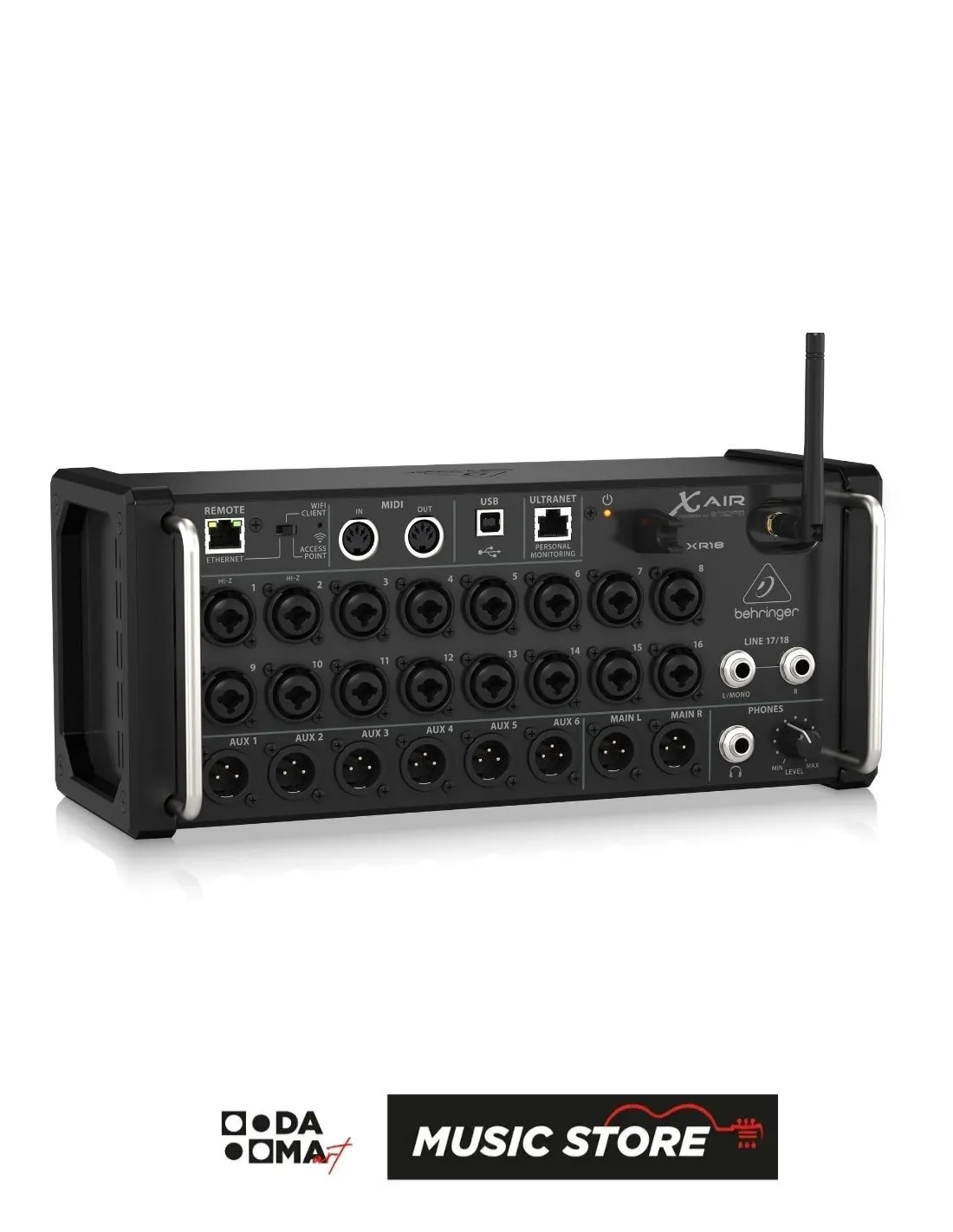

The Behringer XR18 X AIR is an 18-input, 12-bus digital mixer designed for live and studio applications. Its compact rack-mountable stage-box design combines 16 fully programmable Midas-designed microphone preamps, an integrated WiFi module and an 18x18 bidirectional USB audio interface. Remote control is available from iPad, Android, Windows, macOS and Linux devices. Yapıştırılan markdown
The integrated Tri-Mode WiFi system allows direct wireless control without requiring an external router. Access Point mode supports up to four clients simultaneously, while WiFi Client and wired Ethernet/LAN options provide additional network configurations. Its 18x18 bidirectional USB interface enables multichannel recording for computer and iPad-based production environments. Yapıştırılan markdown
The XR18 incorporates an X32-derived effects system with four stereo FX slots, providing delay, chorus, dynamics and a range of reverb processing options. A 100-band Real Time Analyzer (RTA) is available across channel and bus EQs. Each input channel includes Low-Cut, 4-band fully parametric EQ, Gate and Compressor processing, while the Main L/R and six Aux buses provide inserts, dynamics and either 6-band parametric or 31-band graphic EQ. Processing is handled by a 40-bit floating-point DSP engine. Yapıştırılan markdown Yapıştırılan markdown
For multi-microphone applications, X AIR Gain Sharing Auto-Mixing can automatically manage levels for up to 16 selected microphones in real time. ULTRANET provides integration with Behringer P-16 personal monitoring systems, while physical MIDI In/Out connections support external MIDI controllers.
Technical Specifications
| Specification | Detail |
|---|---|
| Product Type | Digital Mixer |
| Brand | Behringer |
| Model | XR18 |
| Series | X AIR |
| Input / Bus Configuration | 18 Inputs / 12 Buses |
| Microphone Preamps | 16 Programmable Midas-Designed Preamps |
| Remote Control | iPad, Android, PC, Mac, Linux |
| Wireless Connectivity | Integrated Tri-Mode WiFi |
| Wired Control | Ethernet / LAN |
| USB Audio Interface | 18x18 Channels, Bidirectional |
| Auto-Mixing | X AIR Gain Sharing, Up to 16 Microphones |
| FX Engine | X32-Based |
| FX Slots | 4 Stereo |
| RTA | 100-Band Real Time Analyzer |
| Input Channel Processing | Low-Cut, 4-Band Parametric EQ, Gate, Compressor |
| Aux Buses | 6 |
| Main Bus | Stereo Main L/R |
| Bus Processing | Inserts, Dynamics, 6-Band Parametric or 31-Band Graphic EQ |
| Aux Outputs | 6 x XLR |
| Main Outputs | 2 x XLR |
| Headphone Output | Yes |
| DSP | 40-Bit Floating-Point |
| Personal Monitoring | ULTRANET, P-16 Compatible |
| MIDI | MIDI In / Out |

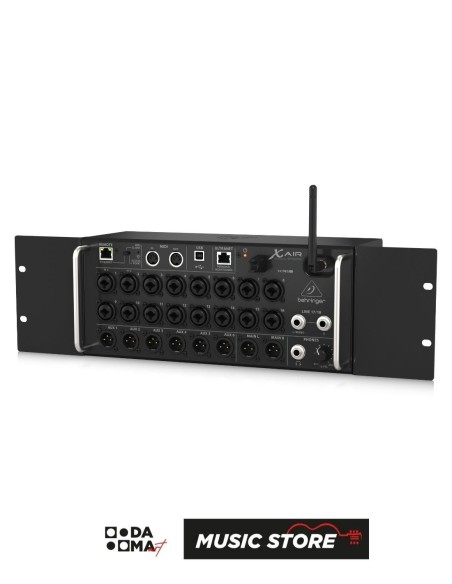

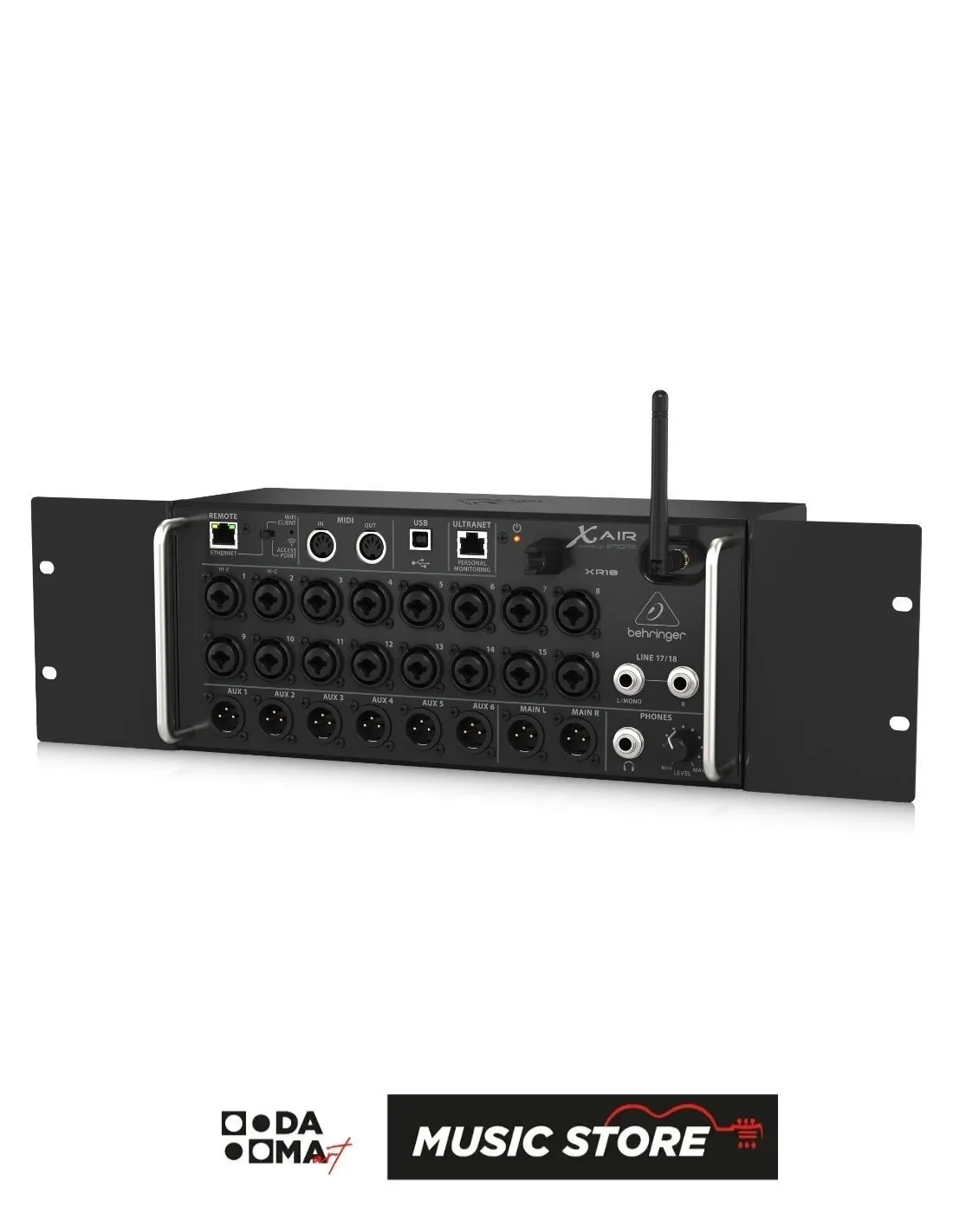

| Rack Mounting | Rack Ears Included |

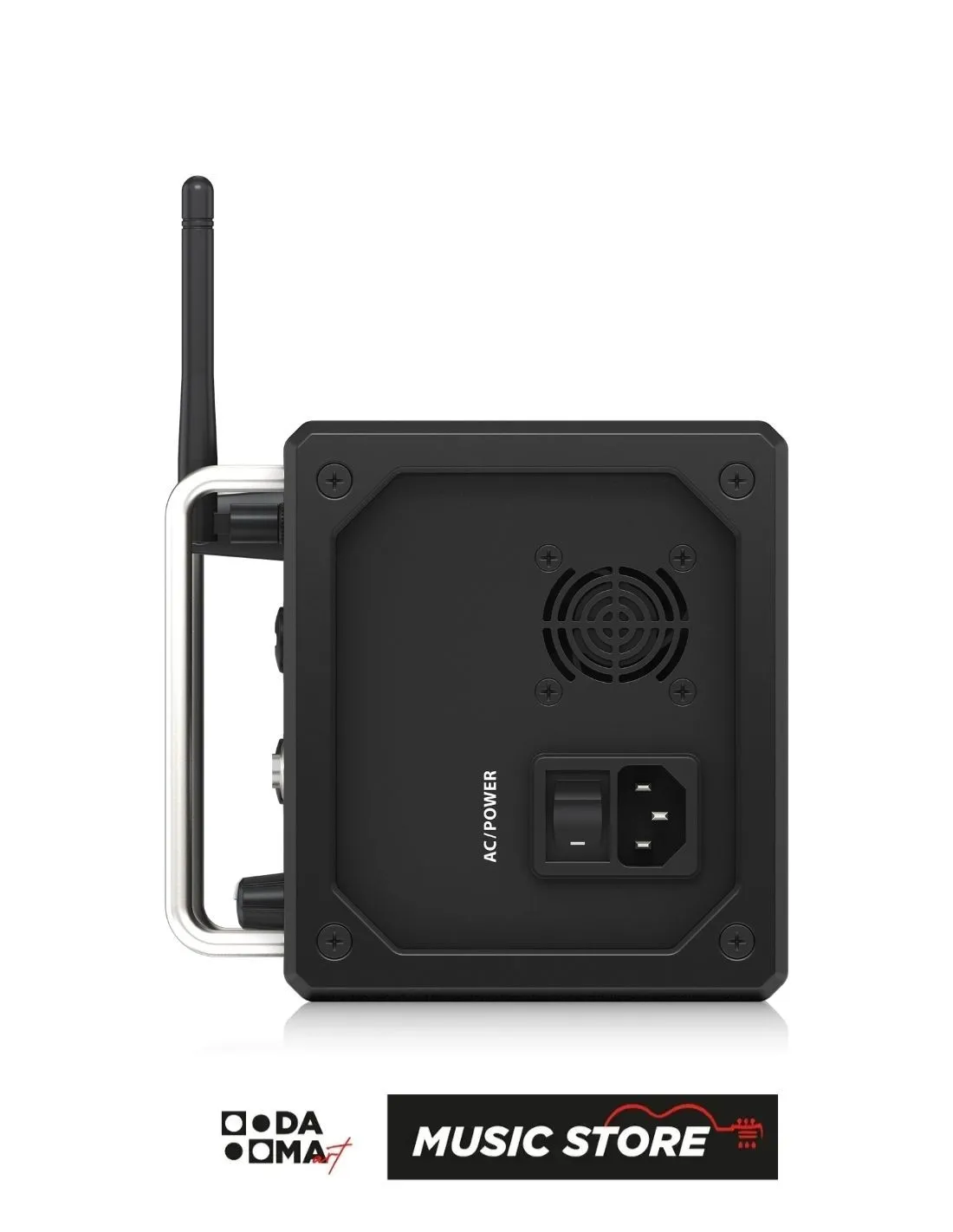

| Power Supply | Internal Switch-Mode Power Supply |
