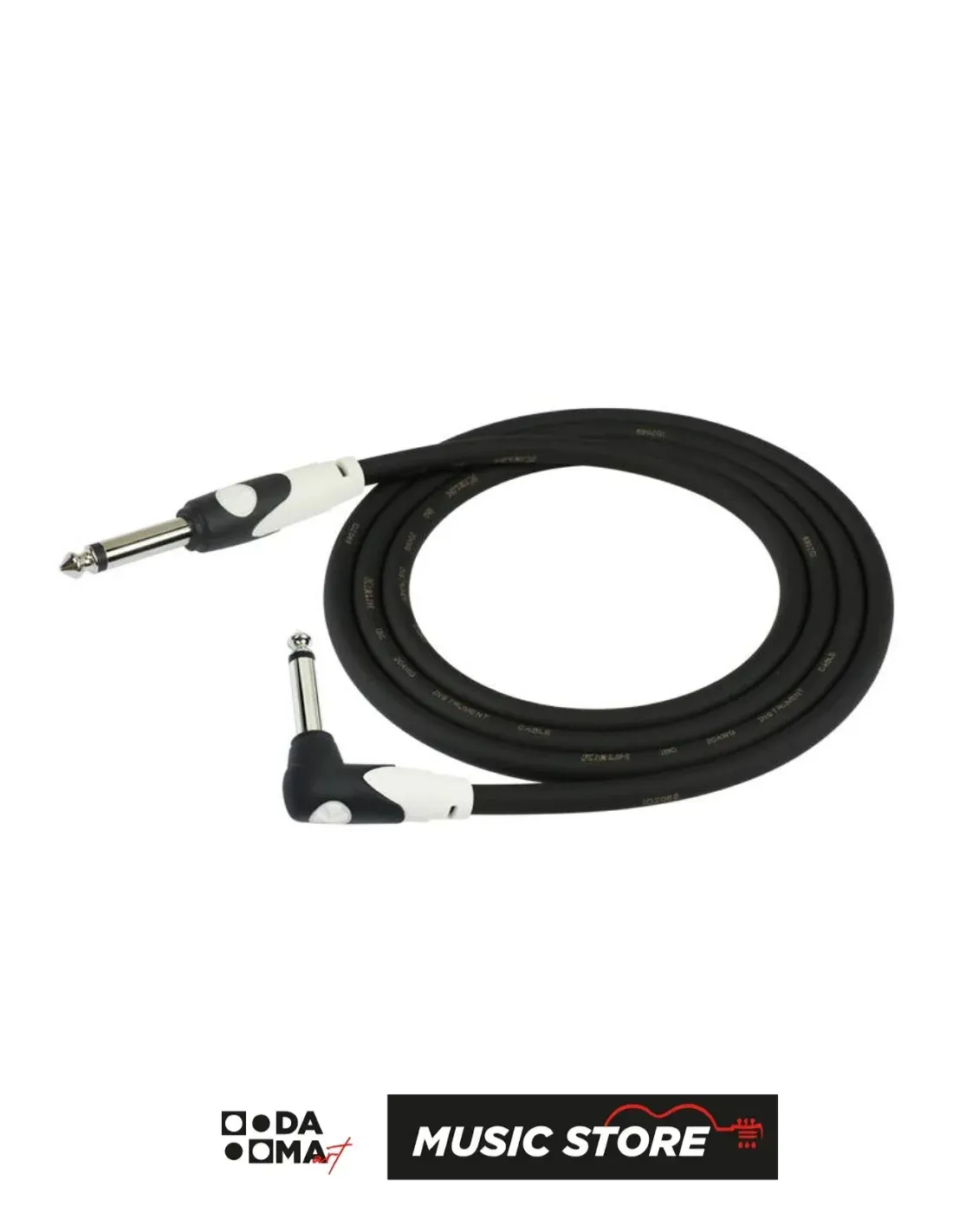

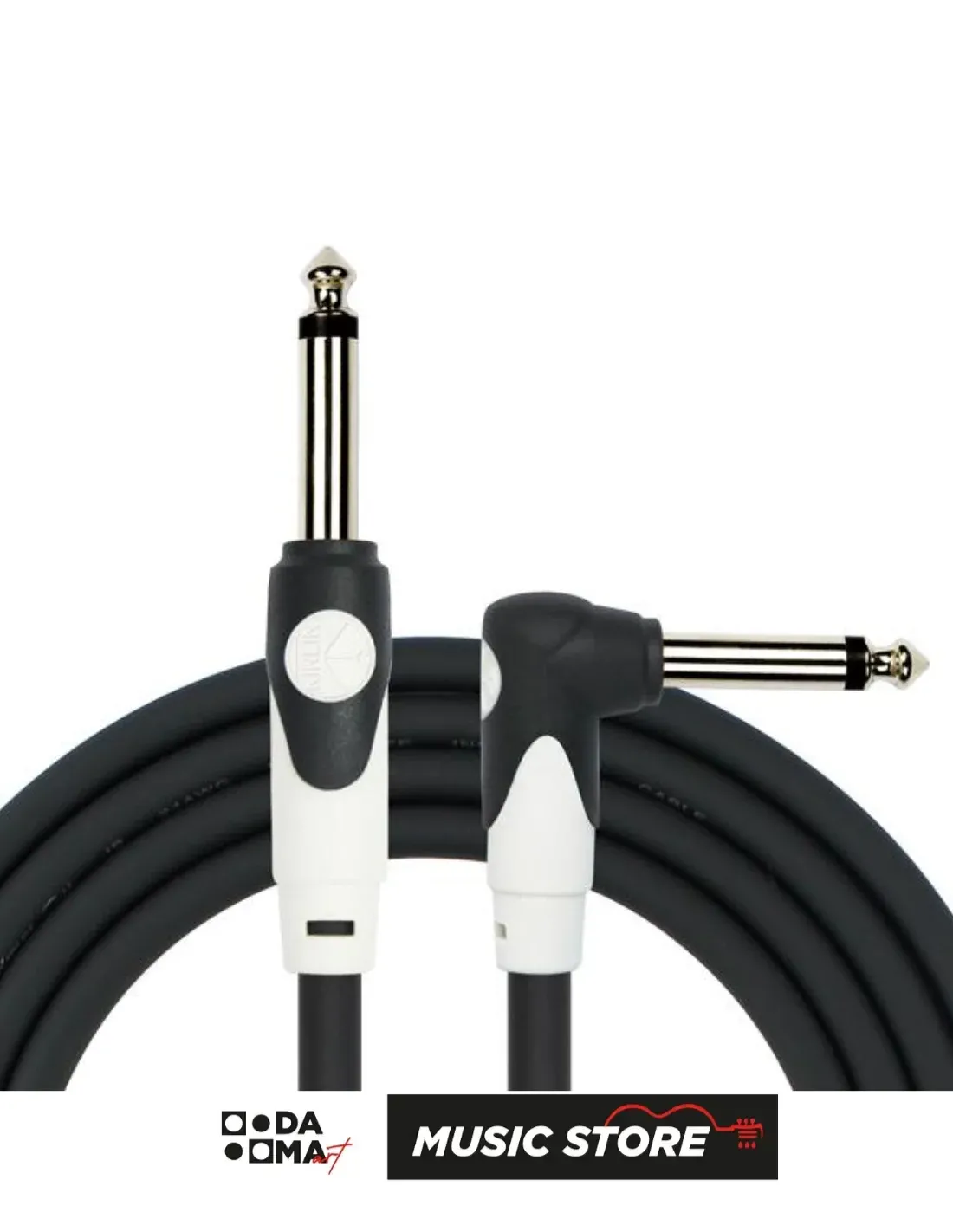

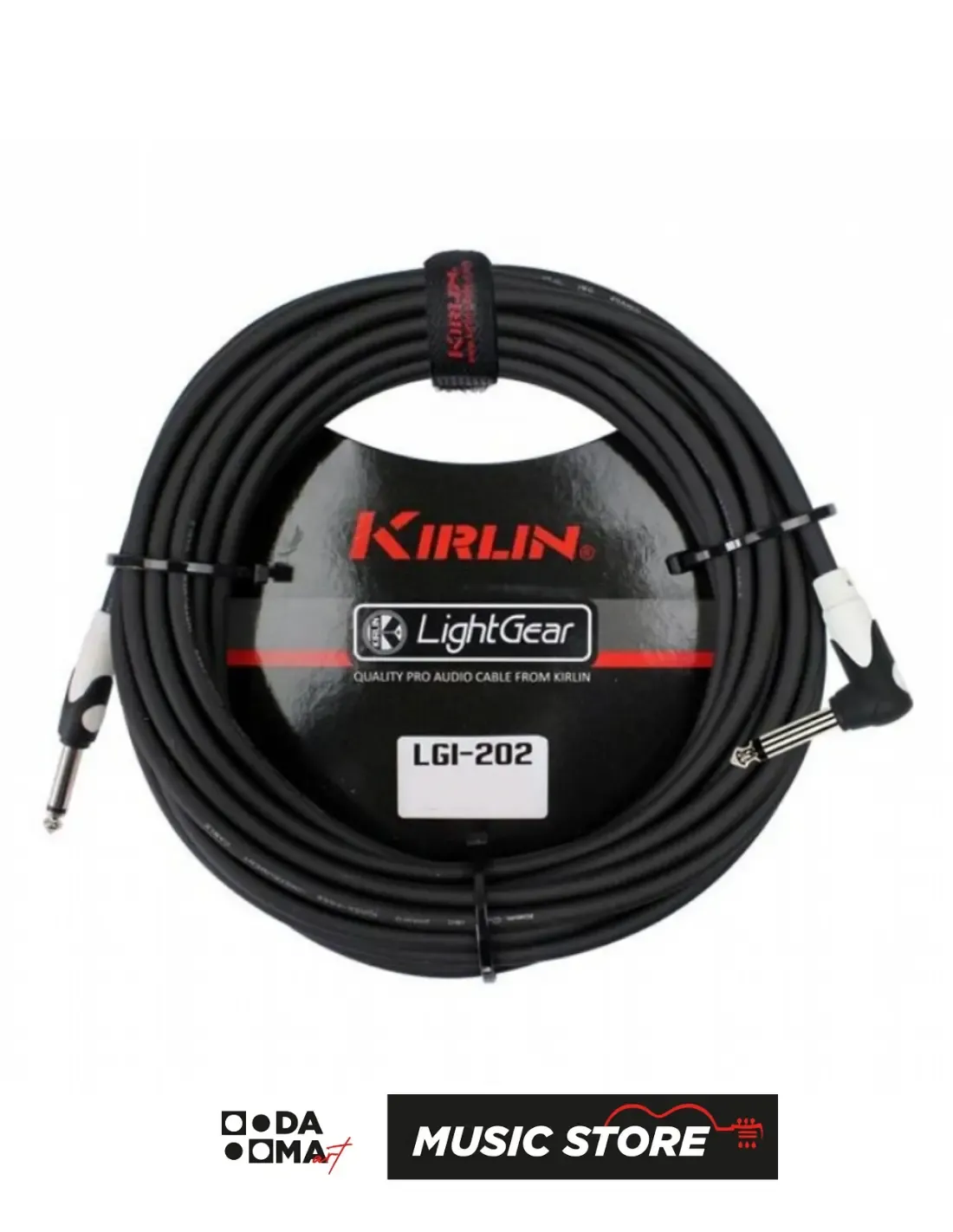

The Kirlin LGI-202-3M/BK is a 3-metre instrument cable featuring a straight 1/4" mono plug and a right-angle 1/4" mono plug. Part of the LightGear series, it is designed to help instrument signals travel rapidly and smoothly with minimal distortion, delay or loss.
The cable uses a 20 AWG CCAM (Copper-Clad Aluminum Magnesium) conductor together with CCAM spiral shielding offering 90% coverage. This construction is designed to help reduce external interference and provide reliable signal transmission.
A 6.5 mm outer-diameter PVC jacket provides a durable exterior, while the metal connectors feature nickel-plated contacts. The straight-to-right-angle configuration provides a practical connection arrangement for a variety of instruments and equipment.
Technical Specifications
| Specification | Detail |
|---|---|
| Product Type | Instrument Cable |
| Brand | Kirlin |
| Model | LGI-202-3M/BK |
| Series | LightGear |
| Length | 3 Metres |
| Connector 1 | Straight 1/4" Mono Plug |
| Connector 2 | Right-Angle 1/4" Mono Plug |
| Connector Construction | Metal |
| Contact | Nickel-Plated |
| Conductor | CCAM (Copper-Clad Aluminum Magnesium) |
| Wire Gauge | 20 AWG |
| Shielding | CCAM Spiral, 90% Coverage |
| Jacket Material | PVC |
| Jacket OD | 6.5 mm |
| Colour | Black |
| Warranty | 1-Year Limited Warranty |
