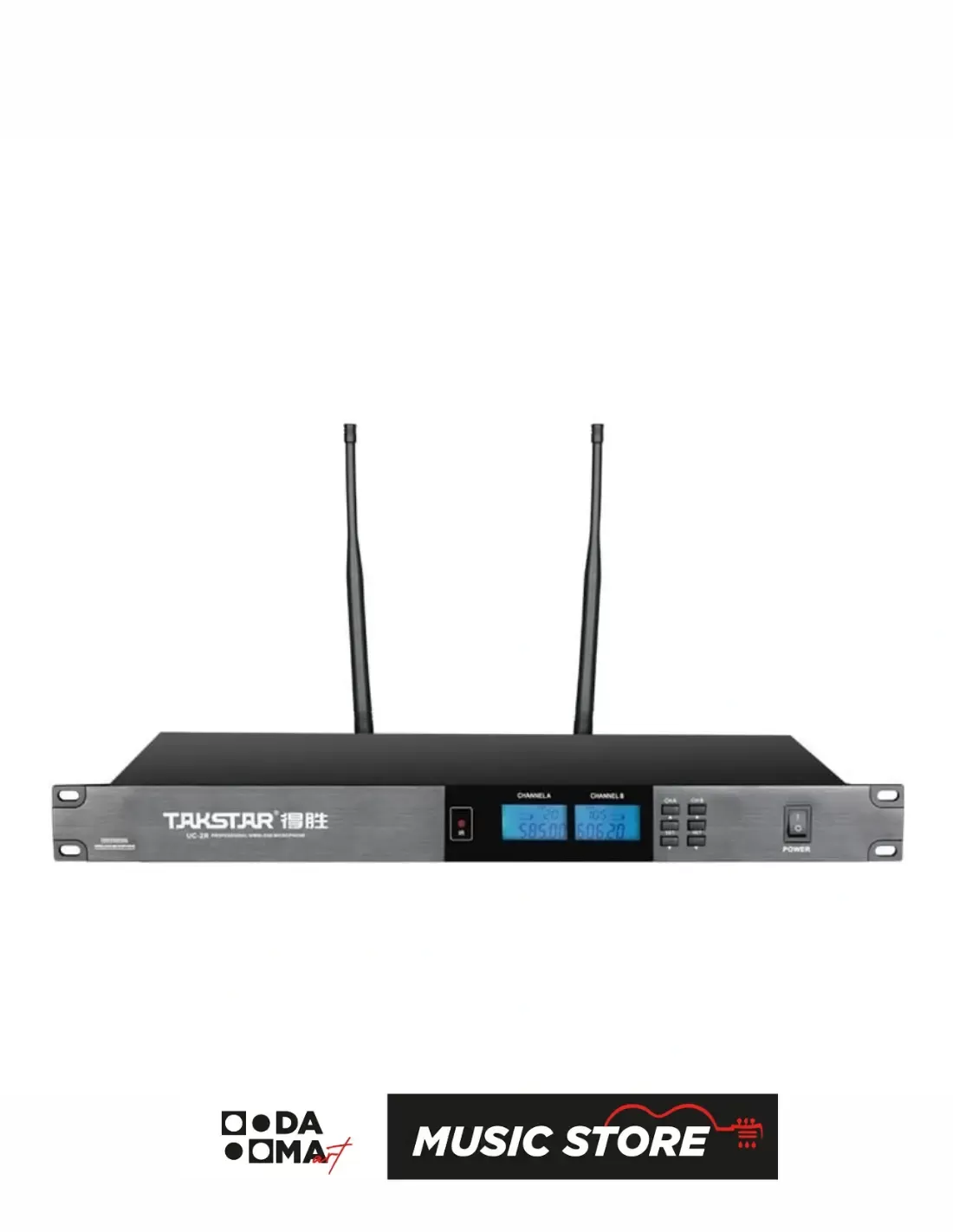

Takstar UC2R Dual Channel Wireless Microphone System Receiver Unit
The Takstar UC2R is a high-performance dual-channel receiver designed for professional wireless microphone systems.
It supports simultaneous operation of two transmitters, making it ideal for conferences, live performances, education, and broadcast setups.
Its UHF frequency range, LCD display, and dual output options (XLR & 1/4") deliver flexibility and reliability in demanding audio environments.
⚠️ This product includes the receiver unit only.

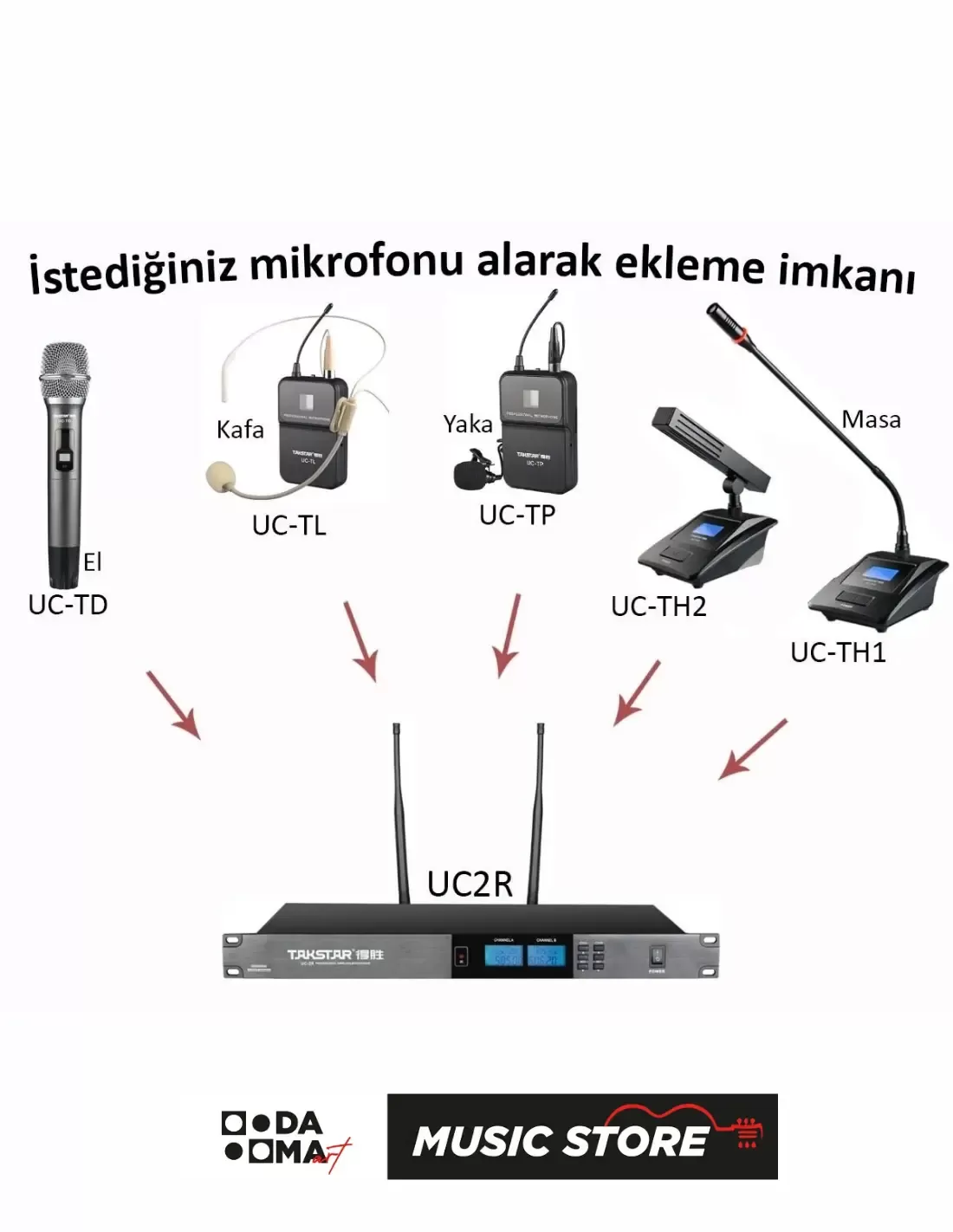

Compatible with: UC-TD (Handheld Mic), UC-TP (Lavalier Mic), UC-TL (Headset Mic), UC-TH1 (Gooseneck Mic), UC-TH2 (Desktop Condenser Mic).
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Takstar |
| Product Type | Wireless Microphone Receiver |
| Model | UC2R |
| Channels | 2 |
| Frequency Range | 580–630 MHz |
| Bandwidth | 60 MHz |
| Modulation | FM |
| Signal-to-Noise Ratio | >50 dB |
| Frequency Response | 80 Hz – 18 kHz |
| Distortion (THD) | <0.5% @ 1 kHz |

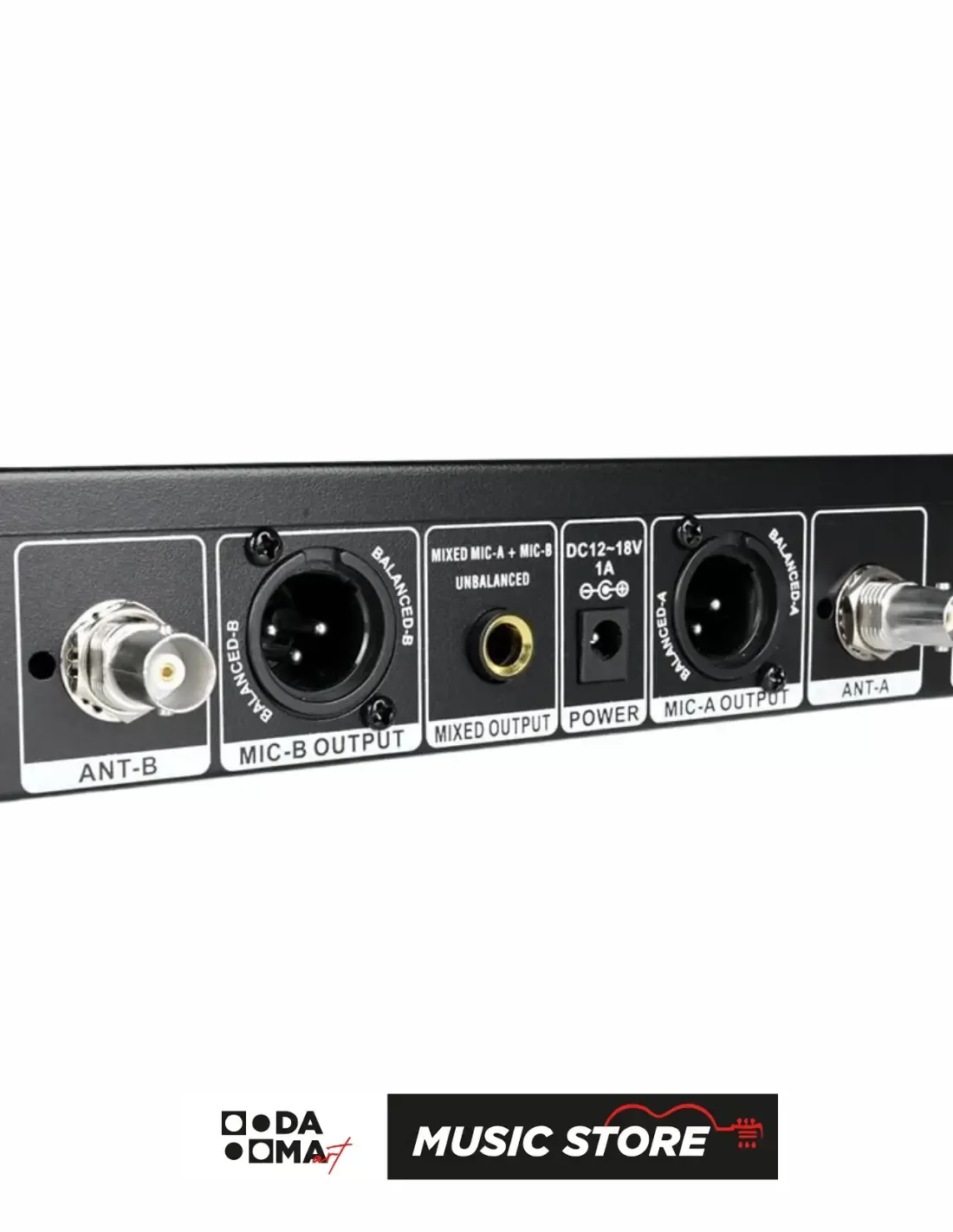

| Outputs | XLR (balanced), 6.3 mm (unbalanced) |
| Output Level | XLR: 250 mV / 600Ω, 1/4": 400 mV / 3kΩ |
| Sensitivity | >25 dBu (SIND=35 dB) |
| Power Supply | DC 12V / 1A |
| Power Consumption | 8W (max) / 3W (idle) |
| Dimensions | 480 × 170 × 50 mm |
| Operating Range | Up to 100 m (ideal conditions) |
| Operating Temperature | 0°C – 55°C |
| Compatible Transmitters | UC-TD, UC-TP, UC-TL, UC-TH1, UC-TH2 |
| Package Contents | UC2R receiver, power adapter, audio cable, user manual |
