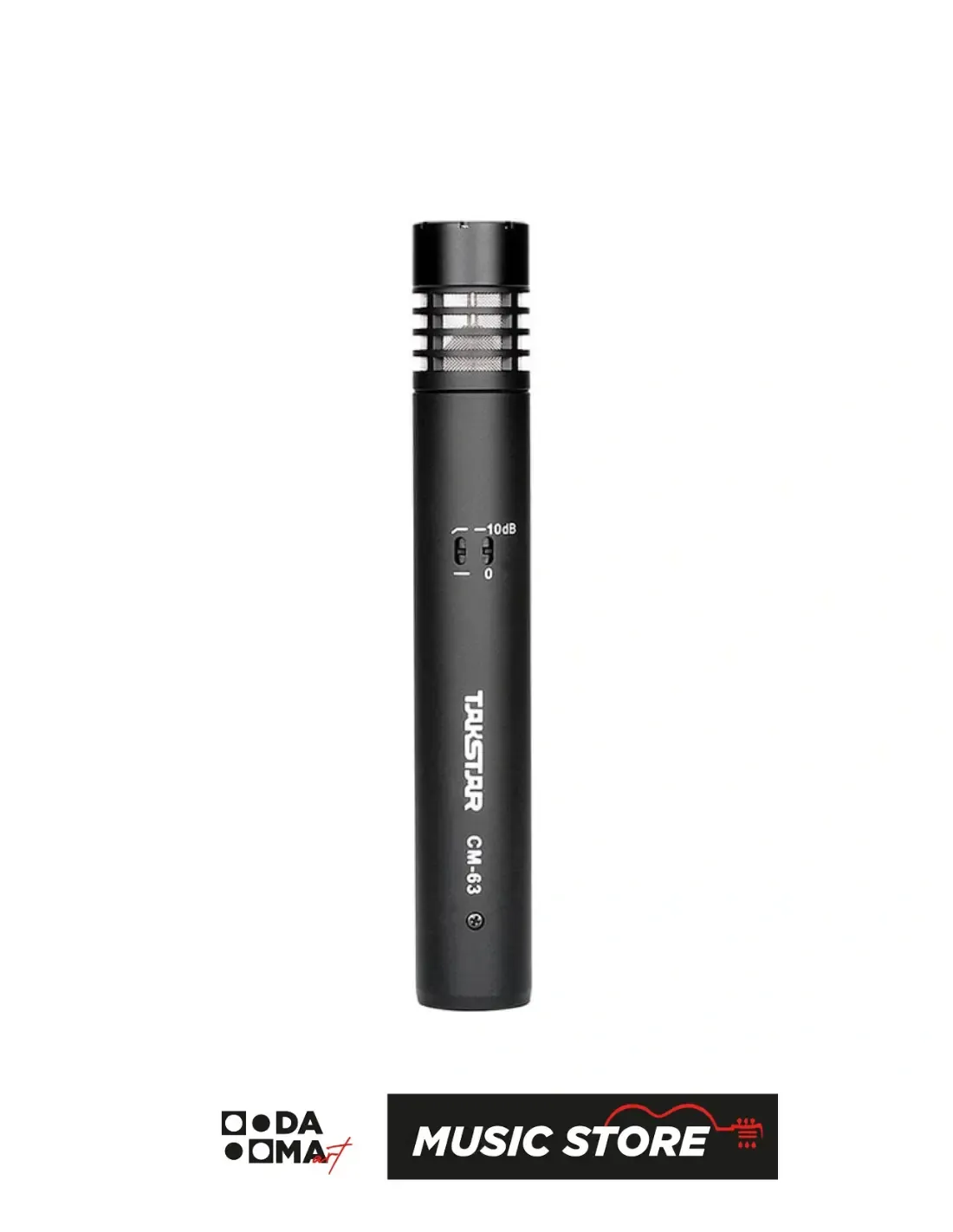

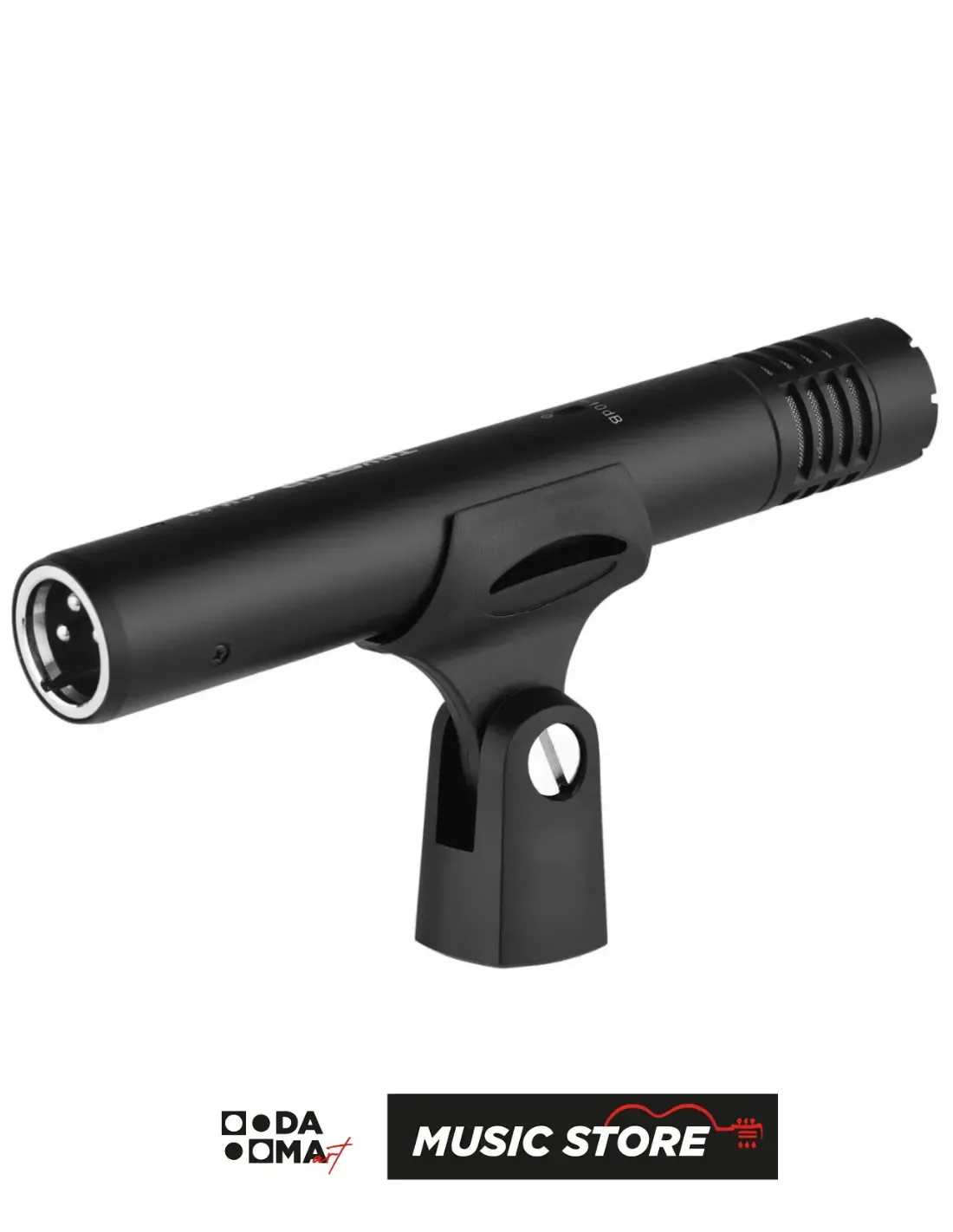

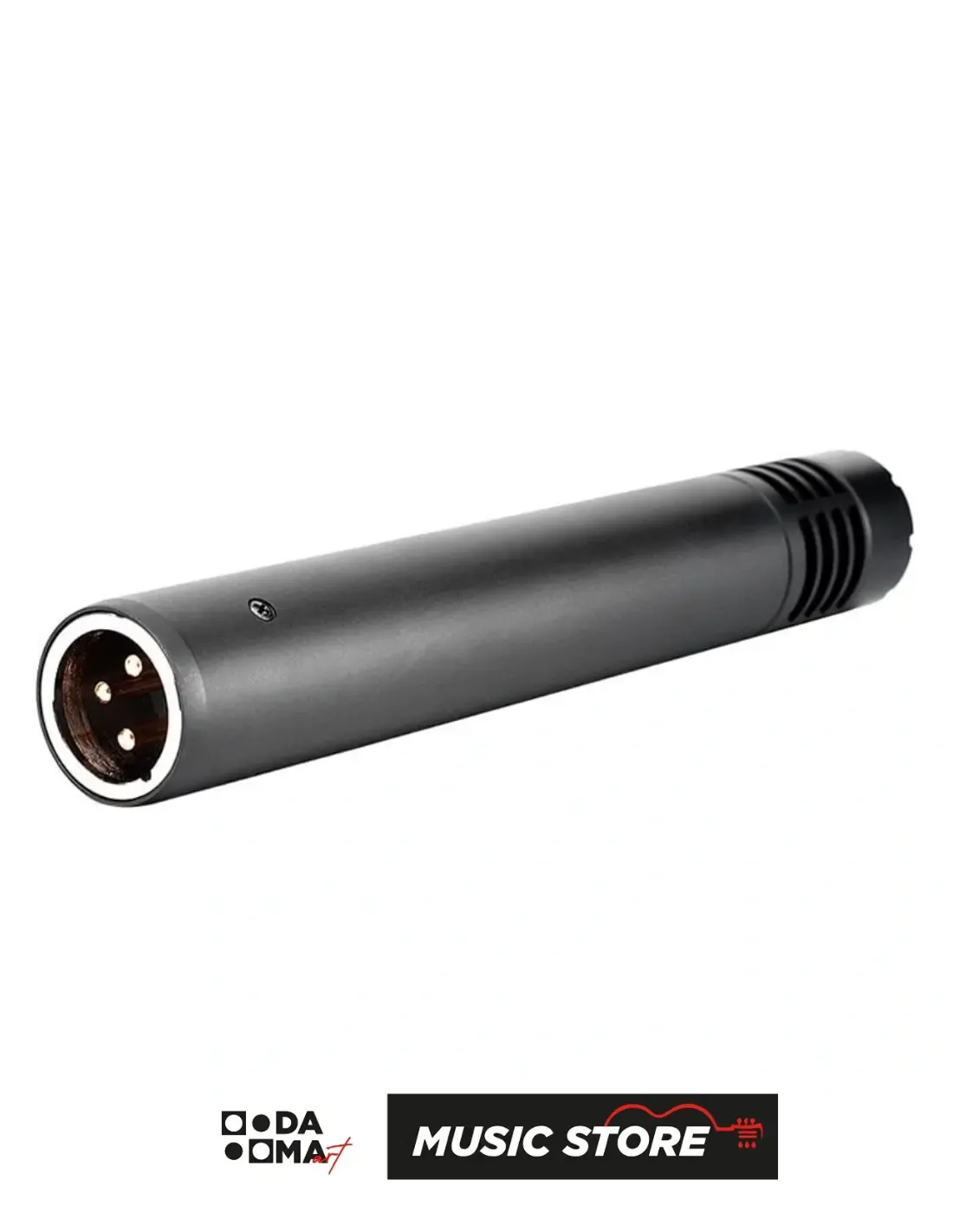

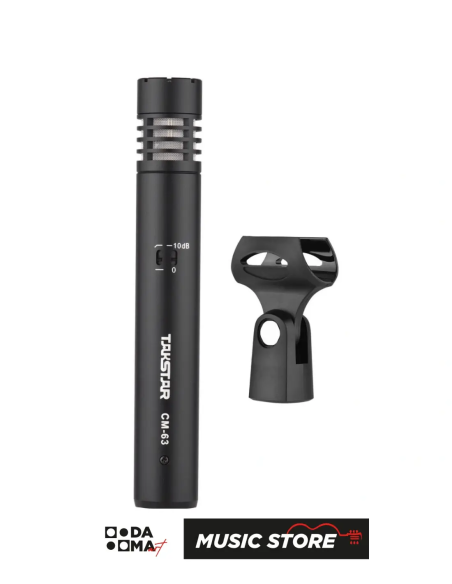

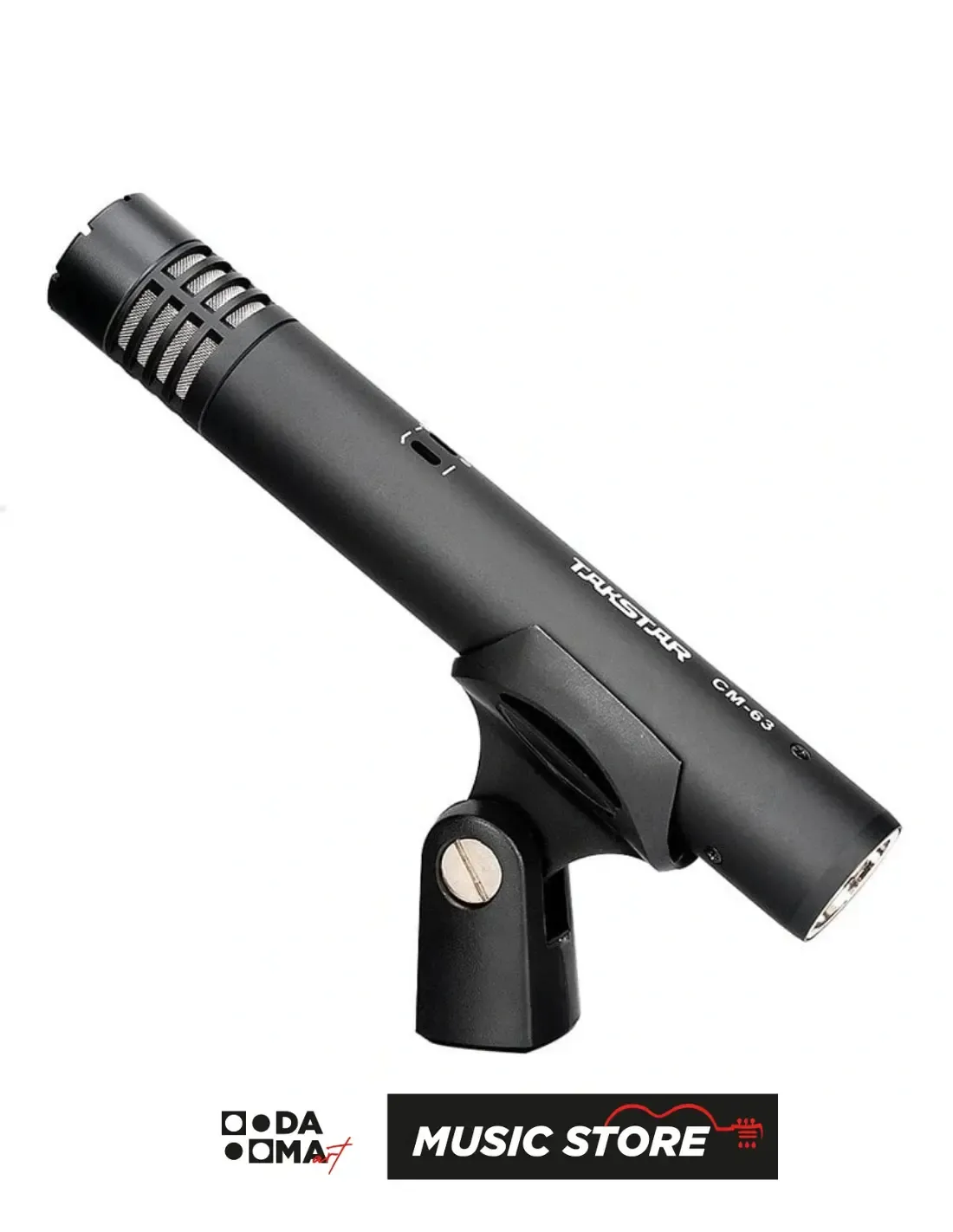

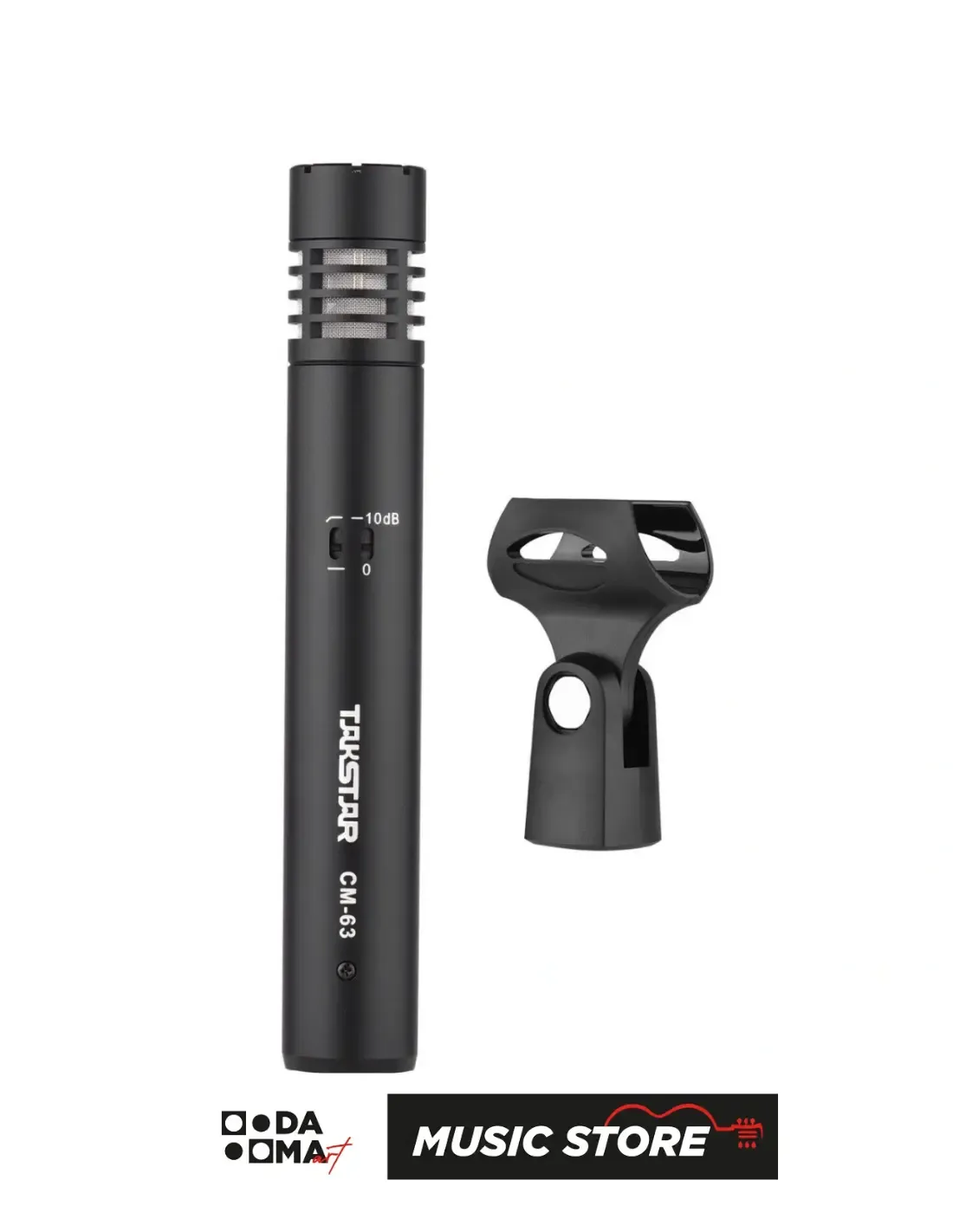

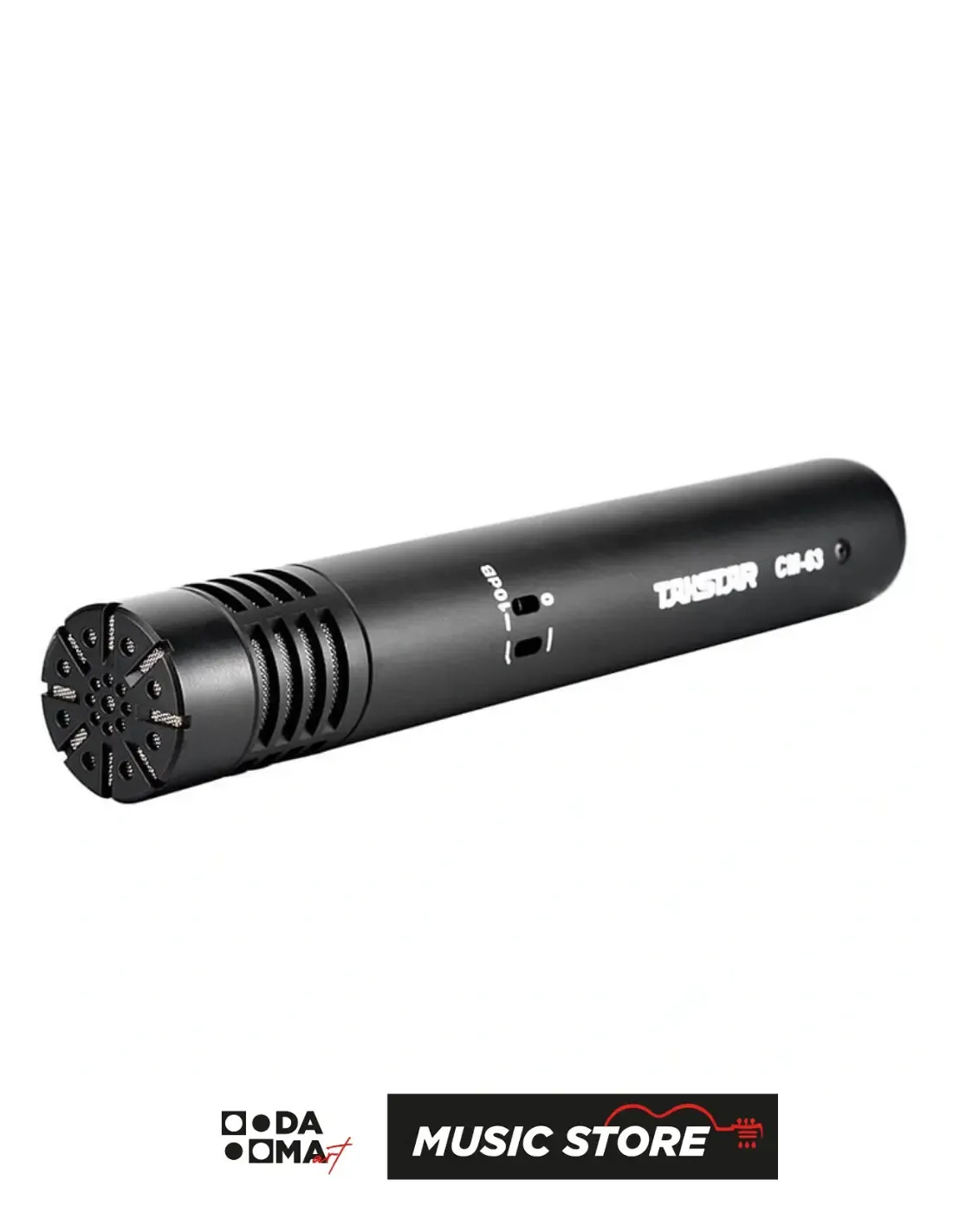

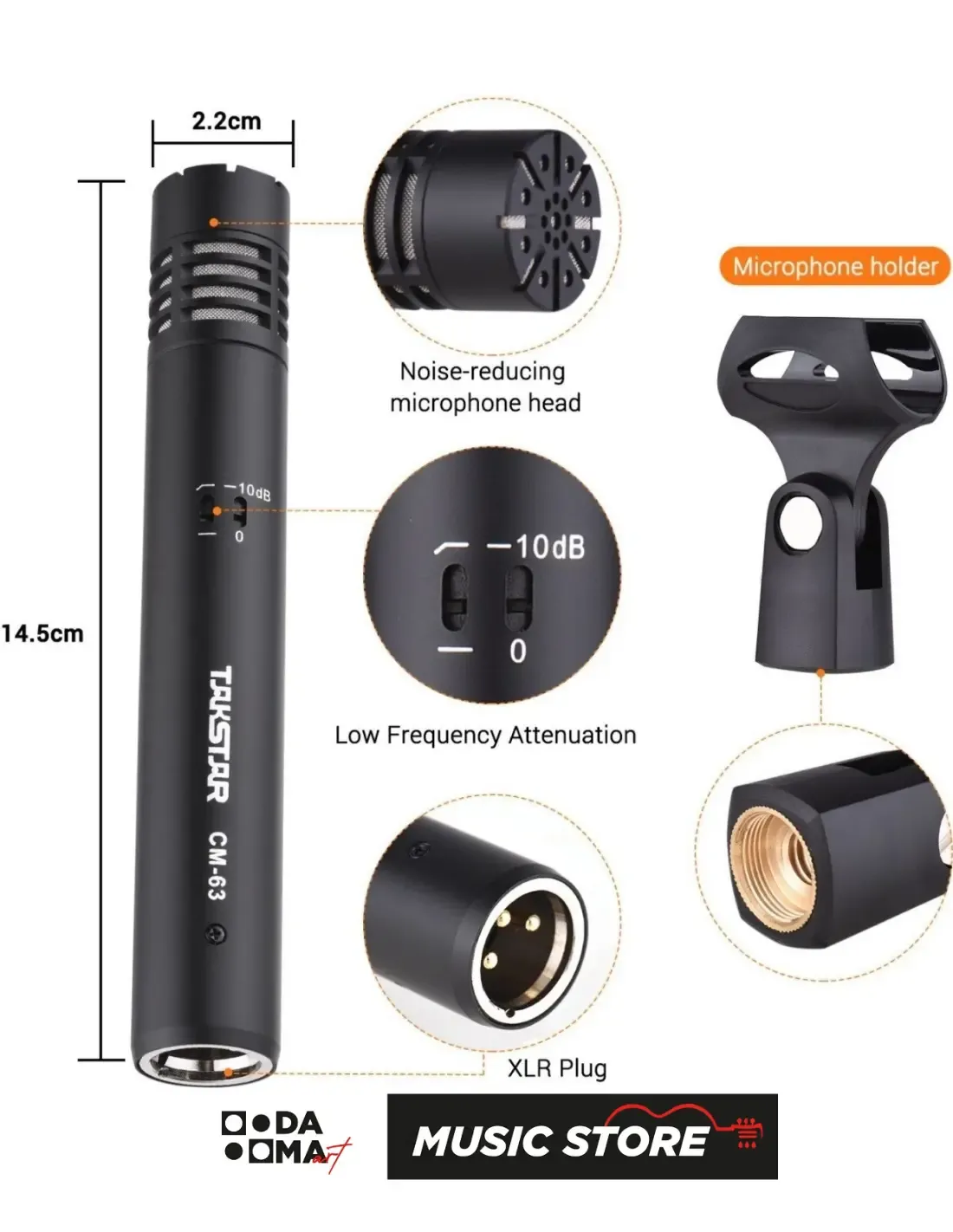

Takstar CM-63 Condenser Instrument Microphone
The Takstar CM-63 is a cardioid condenser microphone designed for instrument pickup, recording, broadcast, stage performance, and studio applications. Its wide frequency response, high sensitivity, and low-noise circuit design make it suitable for capturing detailed sound sources and acoustic instruments.

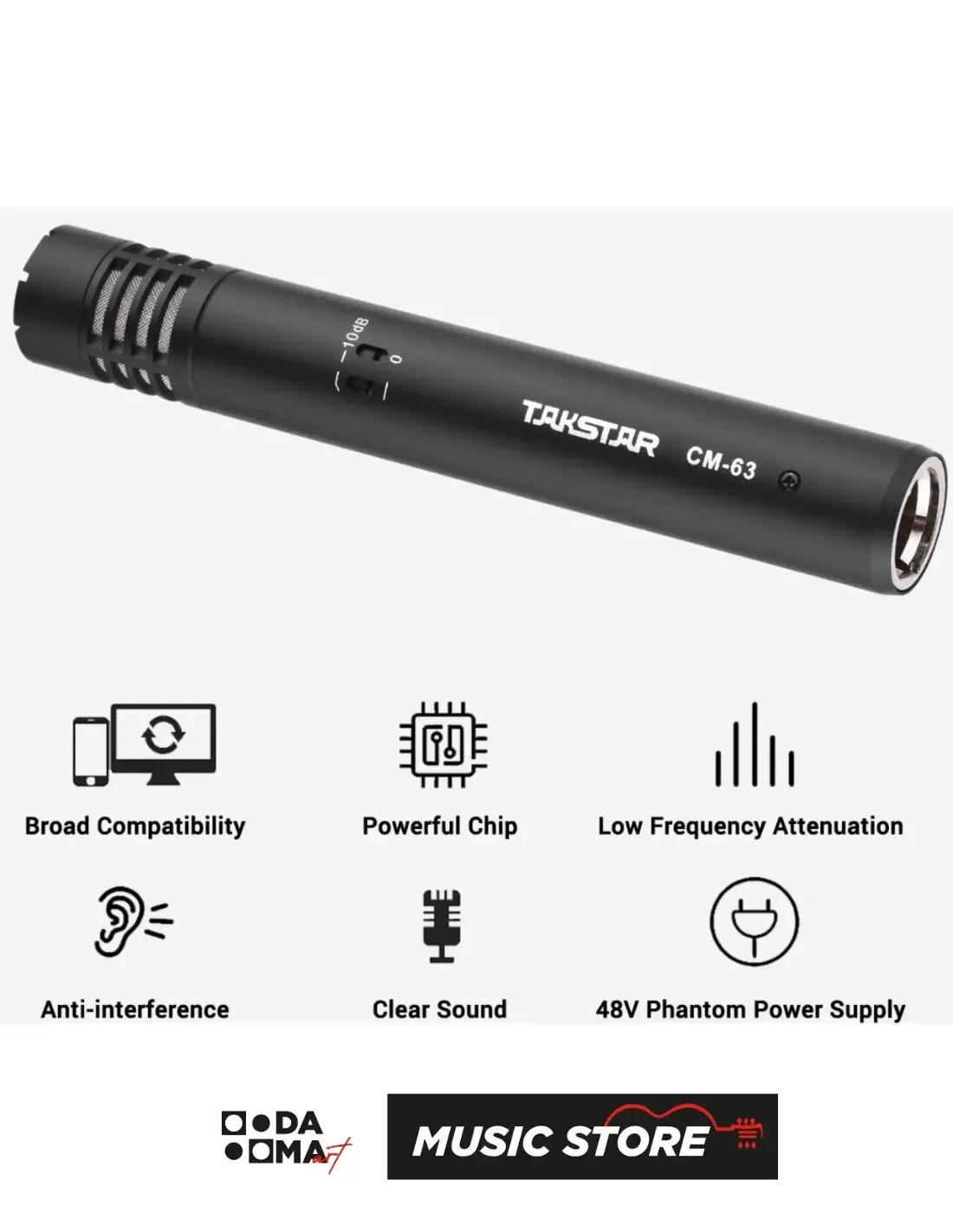

The gold-plated diaphragm capsule provides fast transient response and helps preserve natural sound detail. A low-frequency roll-off and sensitivity attenuation switch allow the microphone to adapt to different recording and live sound environments. The CM-63 operates with 48V phantom power.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Takstar |
| Model | CM-63 |
| Product Type | Condenser Instrument Microphone |
| Microphone Type | Condenser |
| Connection Type | Wired |
| Polar Pattern | Cardioid |
| Capsule | Gold-Plated Diaphragm Capsule |
| Transducer Principle | Pressure Gradient Transducer |
| Frequency Response | 30 Hz – 20 kHz |
| Sensitivity | -35 dB ±2 dB (0 dB = 1V/Pa at 1 kHz) |
| Equivalent Noise Level | ≤20 dB A |
| Maximum SPL | ≥130 dB / ≥140 dB with 10 dB Pad |
| Dynamic Range | 110 dB |
| Bass Filter | 12 dB/octave at 100 Hz |
| Output Impedance | 200 Ω ±30% |
| Load Impedance | ≥1000 Ω |
| Power Requirement | 48V DC Phantom Power |
| Applications | Studio, Broadcast, Stage, Instrument Pickup |
