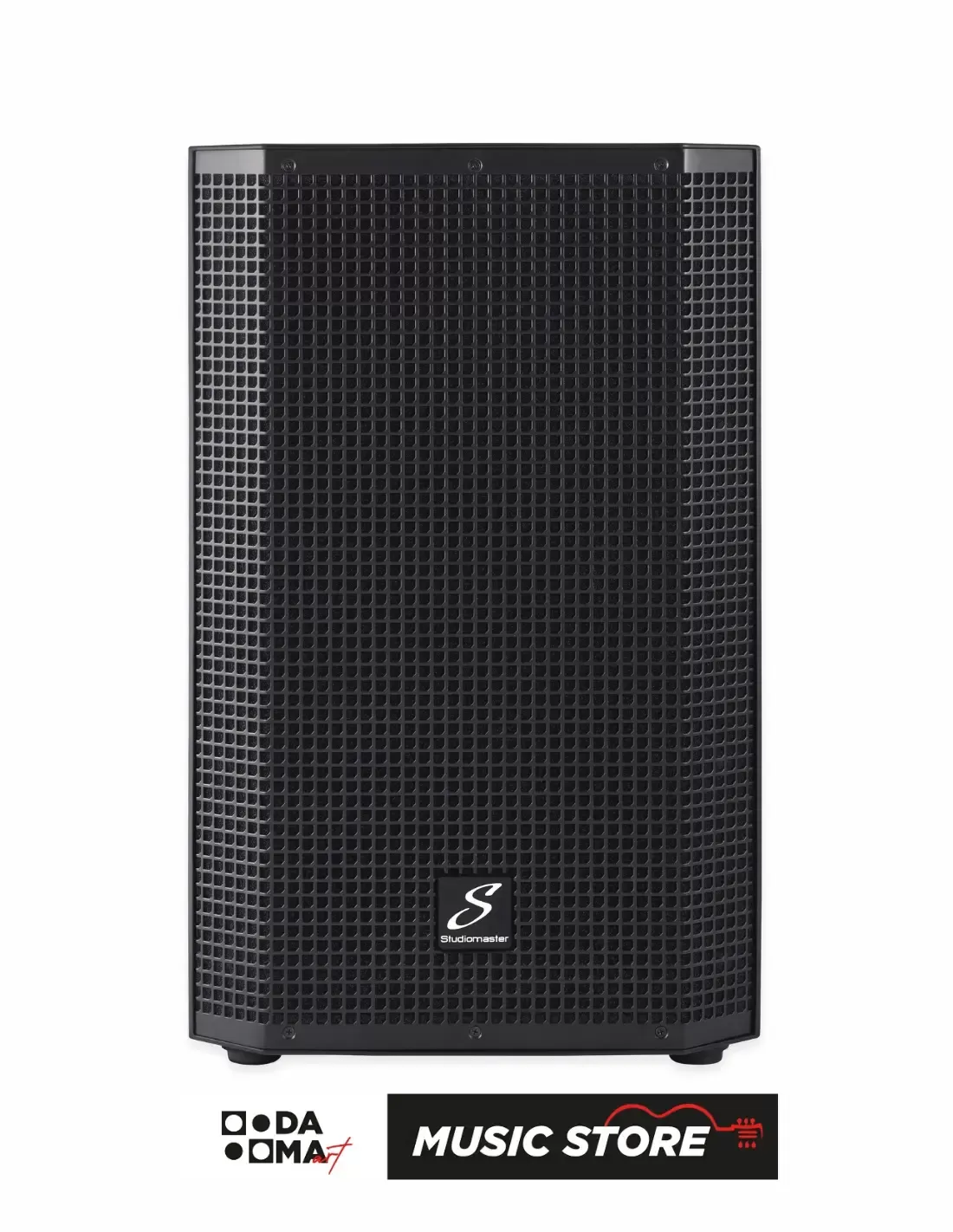

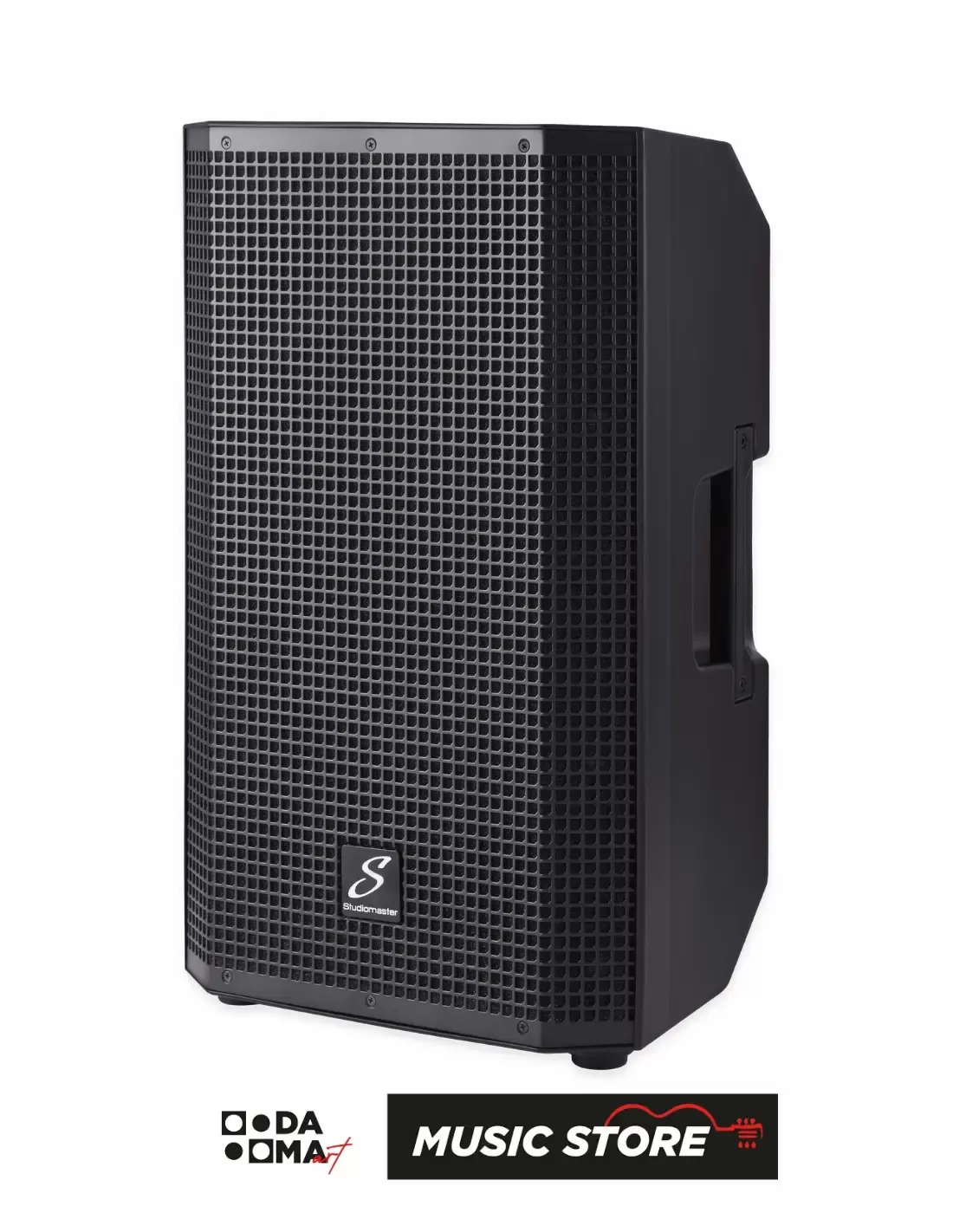

Studiomaster Vortex 15A Active Speaker
The Studiomaster Vortex 15A is a 15-inch active full-range coaxial speaker designed for professional audio performance.
Delivering 1400W peak power, Bluetooth connectivity, and built-in DSP control, it provides powerful, clear, and balanced sound for live performances, events, and installations.
The coaxial configuration ensures even dispersion and natural sound across frequencies, while five DSP modes (Music, Live, DJ, Speech, Monitor) allow instant optimization for any environment.
Featuring dual 35mm top-hat mounts, multiple M10 flying points, and integrated handles, the Vortex 15A combines power, portability, and precision.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Studiomaster |
| Model | Vortex 15A |
| Type | Active Coaxial Full-Range Speaker |
| System | 2-Way Active |
| Drivers | 15" LF (65mm VC) + 1" HF (34mm VC) |
| Power (Peak / Program / RMS) | 1400W / 700W / 350W (300+50) |
| Frequency Response | 50Hz – 20kHz |
| Max SPL | 128 dB |
| Coverage (H x V) | 80° x 80° |
| Crossover Frequency | 2.2 kHz |
| DSP | 24-bit DSP, 5 modes (Music / Live / DJ / Speech / Monitor), 3-band EQ, delay, volume |

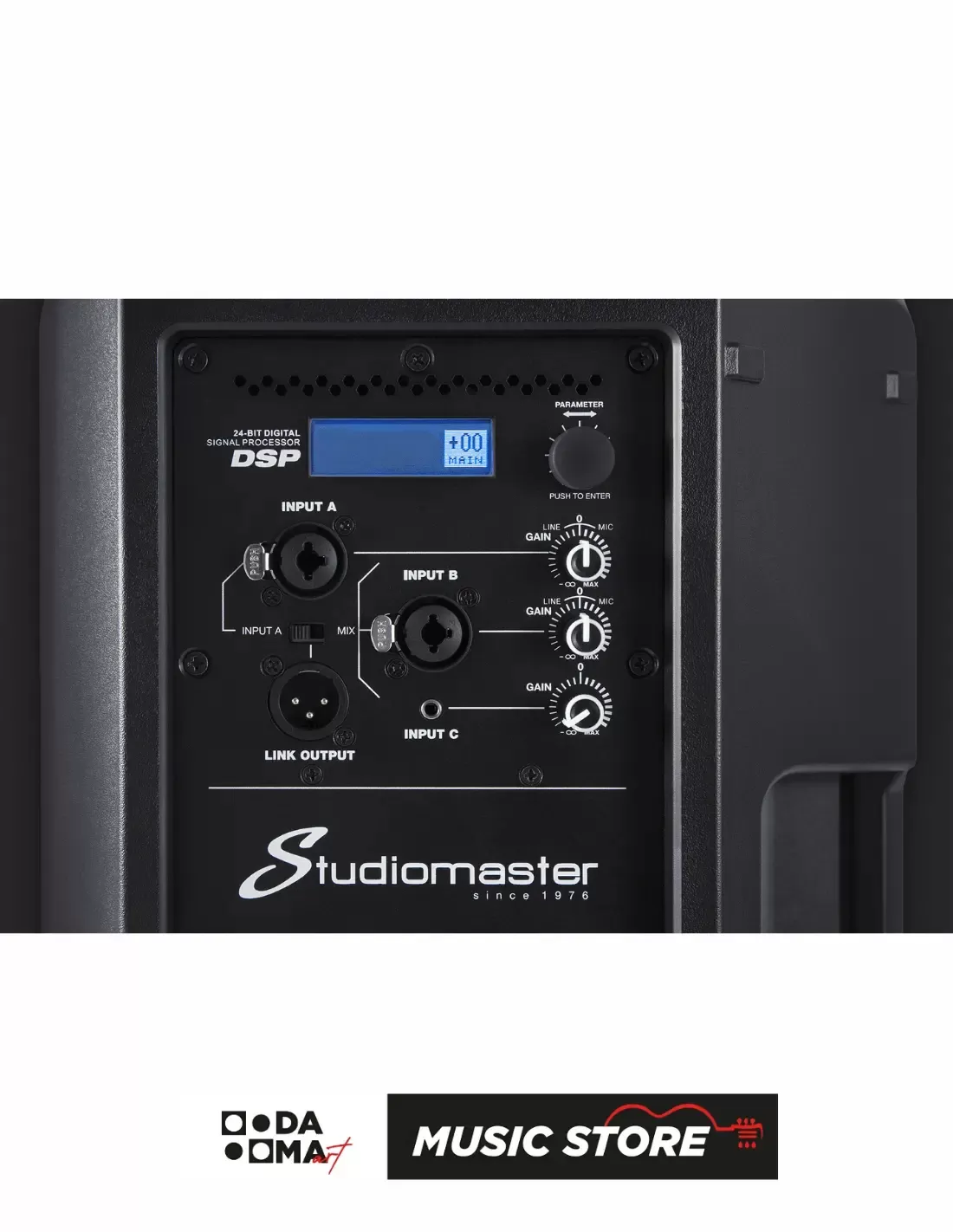

| Inputs / Outputs | 2x XLR/JACK combo + 3.5mm AUX, 1x XLR output |
| Bluetooth | Yes (TWS supported) |
| Cabinet Type | Moulded polypropylene |
| Mounting | Dual top-hat, 5x M10 flying points |
| Dimensions (W × H × D) | 410 × 660 × 350 mm |
| Weight | 19 kg |
