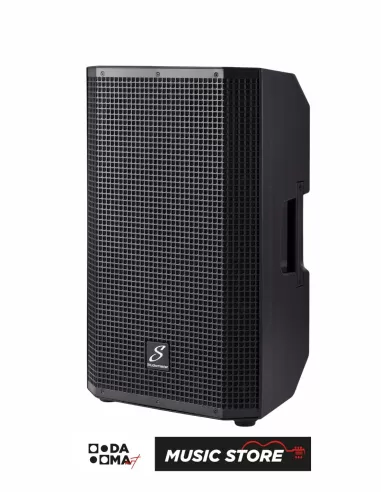

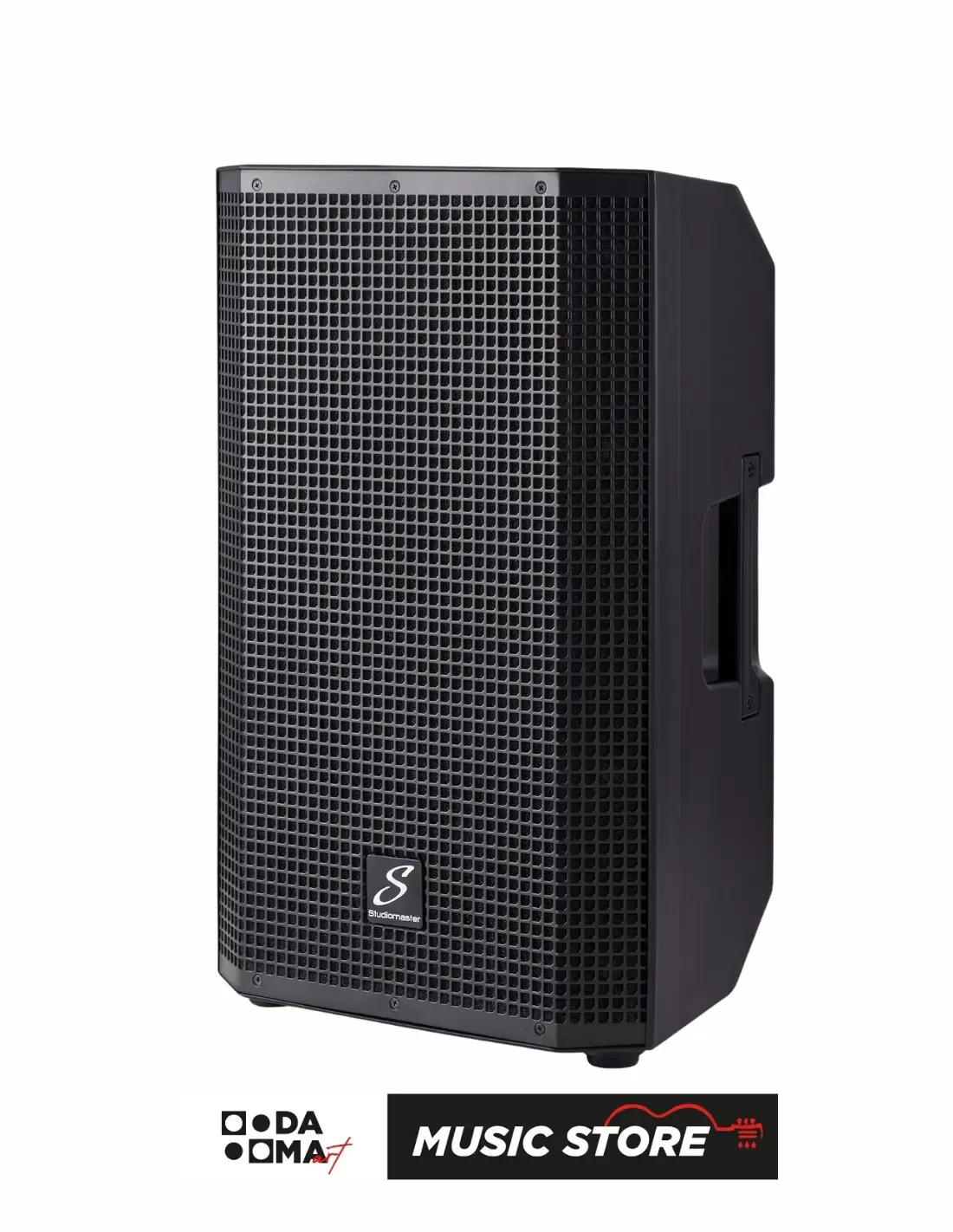

Studiomaster VORTEX 12A Active Speaker 12" 1400W DSP
The Studiomaster VORTEX 12A delivers powerful sound with its 12" two-way coaxial design and 1400W peak amplifier. Perfect for live performances, DJs, and installations, it features a 24-bit DSP with selectable modes, 3-band EQ, delay, and Bluetooth playback for versatile audio control.
Specifications
| Feature | Details |
|---|---|
| Brand | Studiomaster |
| Model | VORTEX 12A |
| Type | 12" 2-way coaxial active loudspeaker |
| Max SPL | 125 dB |
| Amplifier Power | 1400 W Peak / 700 W Program / 350 W RMS (300 + 50) |
| Frequency Response | 50 Hz – 20 kHz |
| Input Sensitivity | 0 dBu |
| Coverage (H x V) | 80° x 80° |
| LF Driver | 12" / 65 mm VC |
| HF Driver | 34 mm VC / 1" throat |
| Crossover Frequency | 2.2 kHz |
| DSP Features | 24-bit DSP, Music / Live / DJ / Speech / Monitor modes, 3-band EQ, delay, level control |

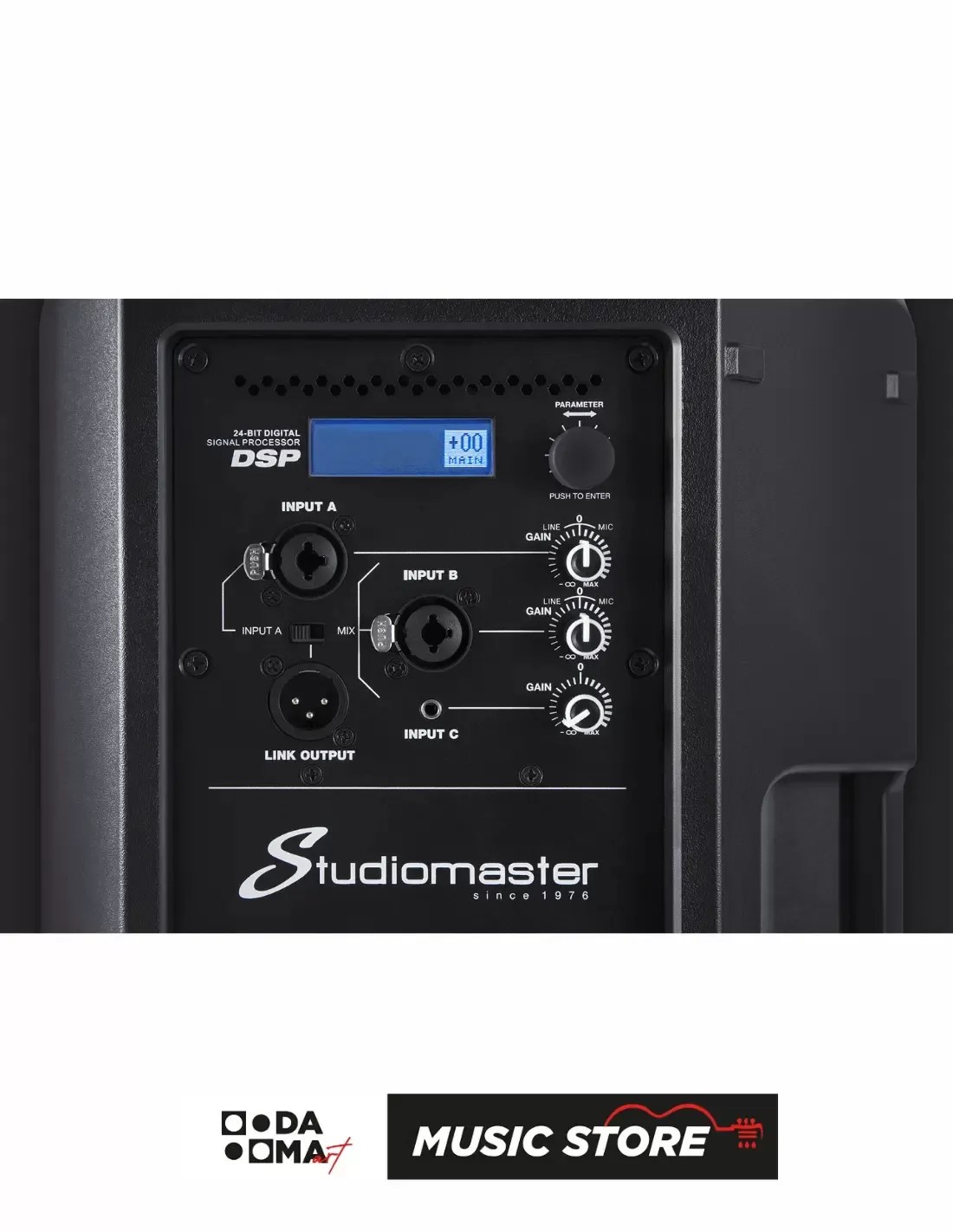

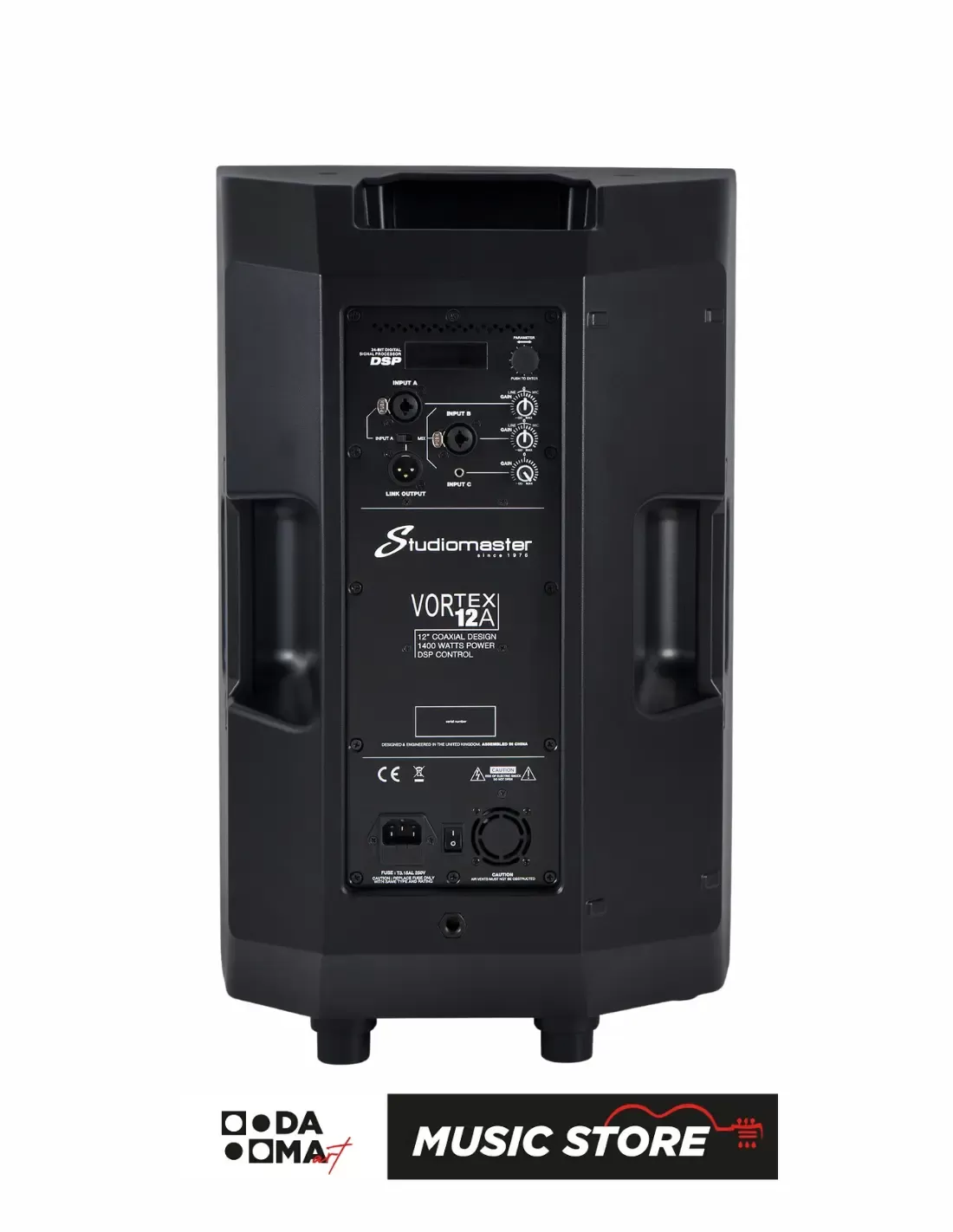

| Connections | 2 x XLR/Jack inputs, 1 x 3.5 mm input, XLR output |
| Wireless | Bluetooth playback |
| Mounting | Dual top hat, 5 x M10 flying points |
| Dimensions (W x H x D) | 360 x 585 x 310 mm |
| Net Weight | 15.5 kg |
5060255345429
