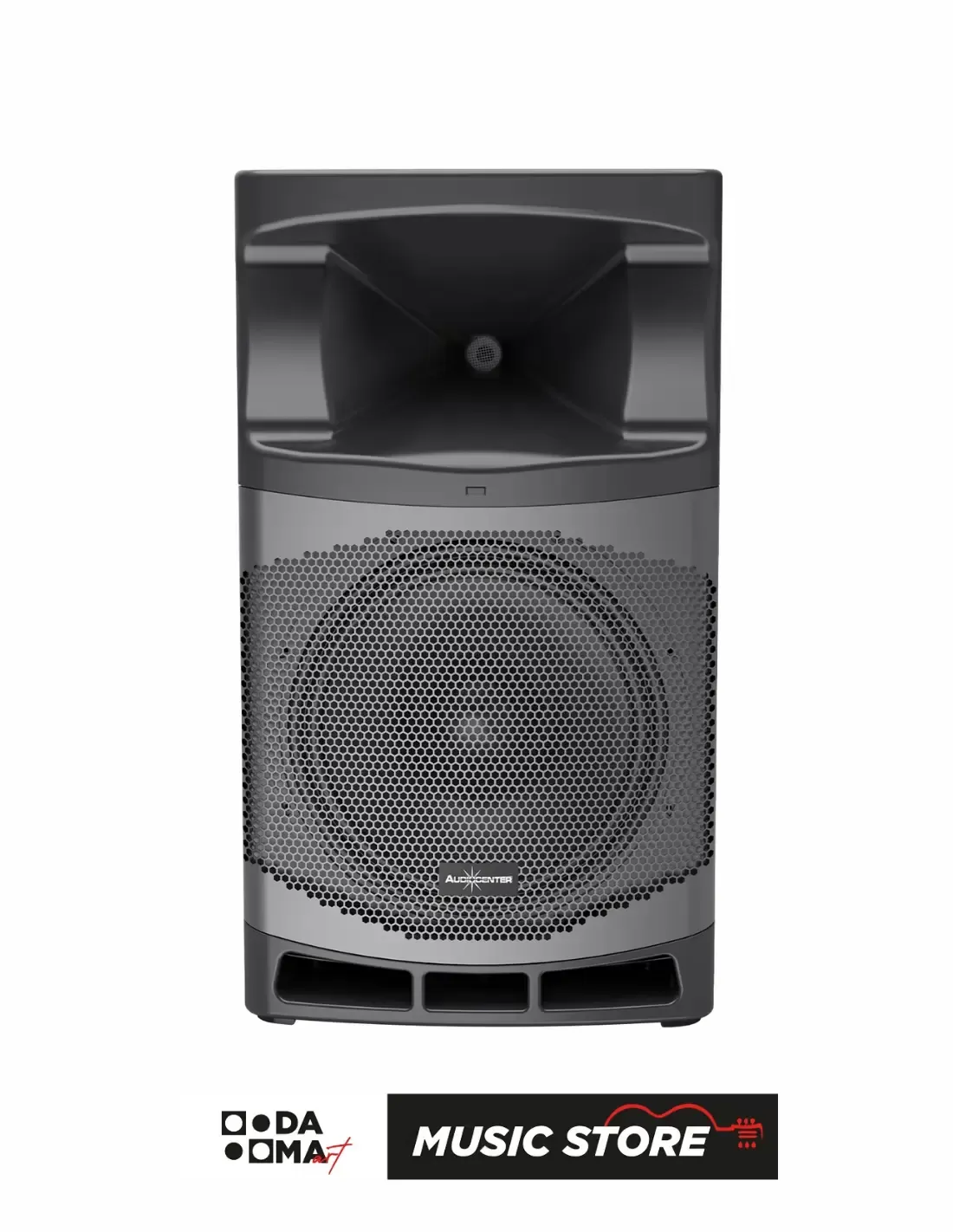

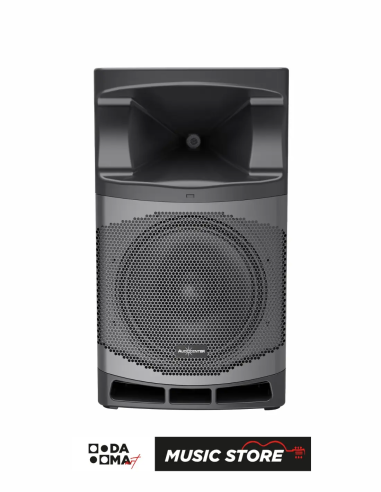

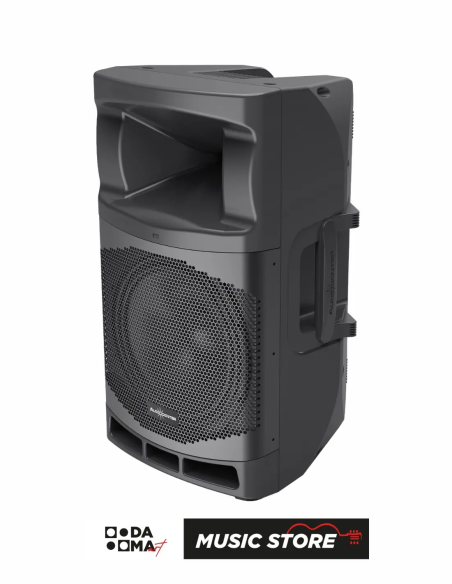

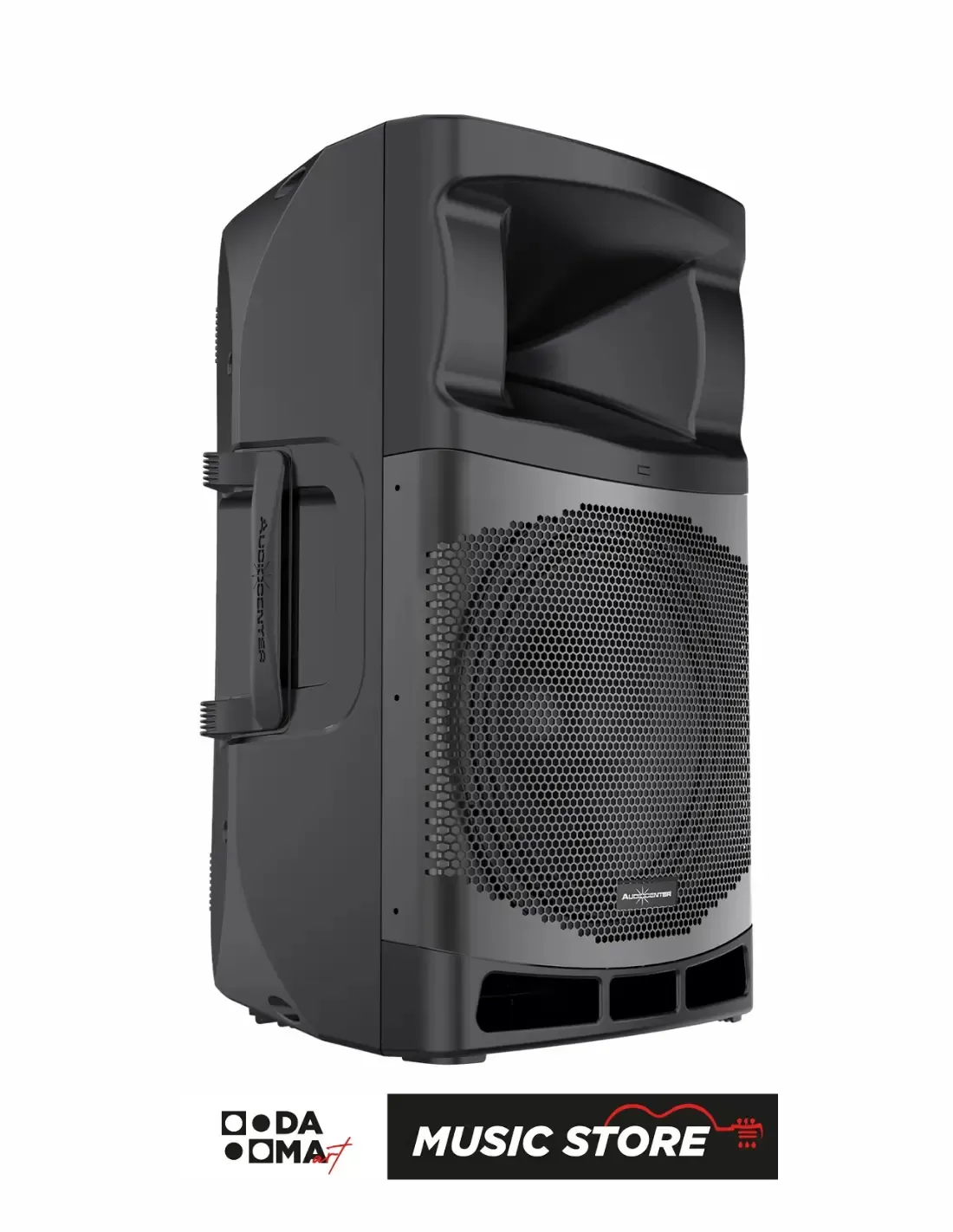

Audiocenter MA15 Active Loudspeaker
The Audiocenter MA15 is a DSP-controlled active loudspeaker designed for professional sound reinforcement.
Its new polypropylene composite cabinet provides durability with reduced weight, making it ideal for both portable PA and stage monitor applications.
Powered by an integrated Class D amplifier and BrainCore™ DSP technology, the MA15 optimizes input signal processing for clearer, more powerful sound.
It supports Bluetooth connectivity, allowing easy streaming from smart devices.
The MA15 can be mounted on a pole, used as a floor monitor, or installed via M8 rigging points for fixed setups.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Audiocenter |
| Model | MA15 |
| Type | Active DSP-Controlled Loudspeaker |
| Drivers | LF: 15" (3" VC), HF: 1" exit (1.4" VC) |
| Frequency Response (-10dB) | 45 Hz – 20 kHz |
| Horizontal Coverage | 80° |
| Vertical Coverage | 50° |
| Max SPL (Cont./Peak) | 128 dB / 134 dB |
| Amplifier Type | Class D |
| Power (RMS / Peak) | 800 W / 1600 W |
| DSP Processor | 48 kHz sampling frequency |
| THD | <0.05% |
| Cooling System | Fan + air convection |
| Protection Circuits | DC, short circuit, thermal, input/output overload, over/undervoltage, soft start |

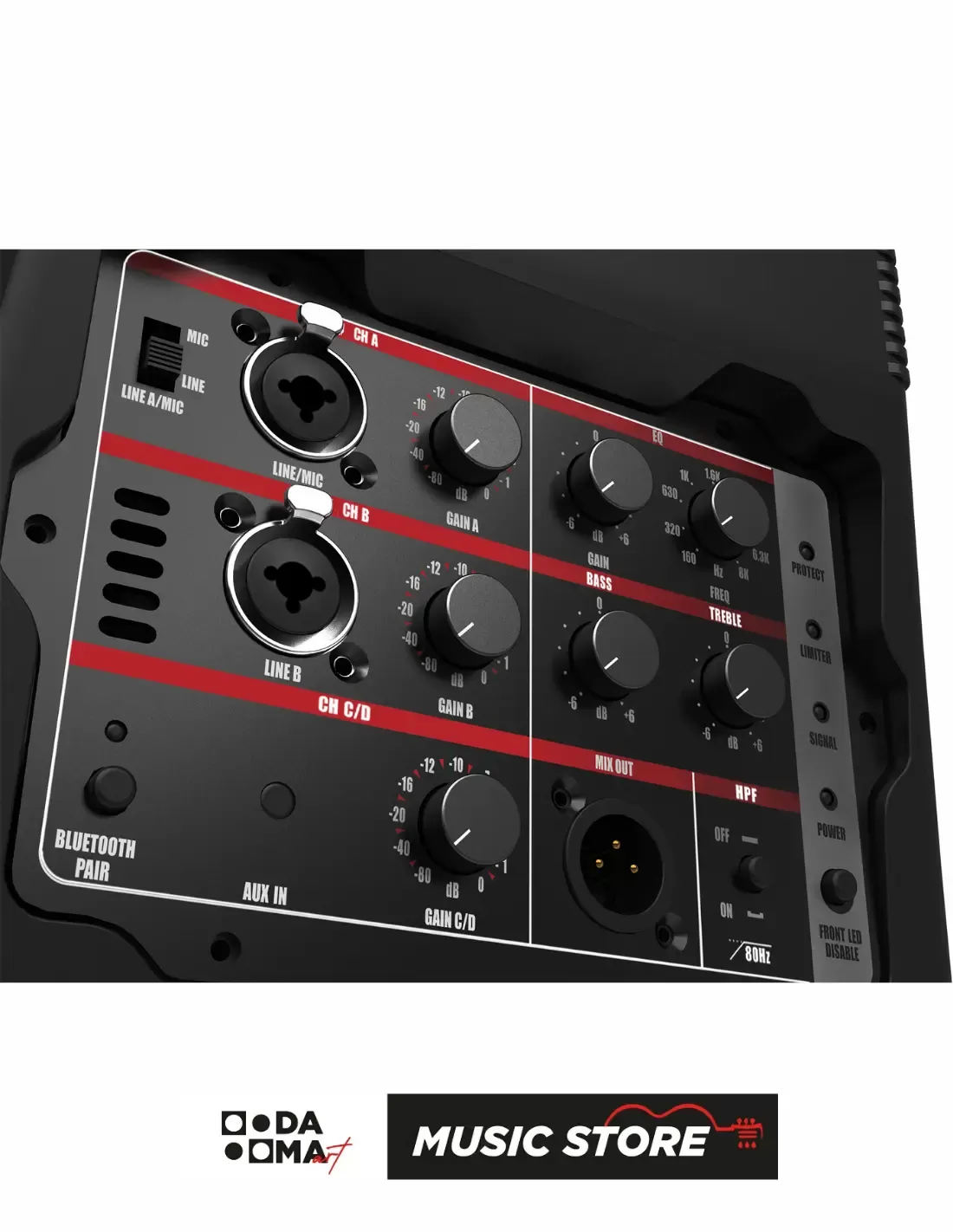

| Inputs | 2 × XLR combo (6.35 mm), 1 × Bluetooth, 1 × 3.5 mm mini jack |
| Outputs | 1 × male XLR |
| Power Input | IEC connector |
| Voltage Range | 100–240V AC ±10% (50/60Hz) |
| Power Consumption (1/8 output) | 64 W |
| Cabinet Material | New polypropylene composite |
| Color | Black |
| Grille | Iron mesh |

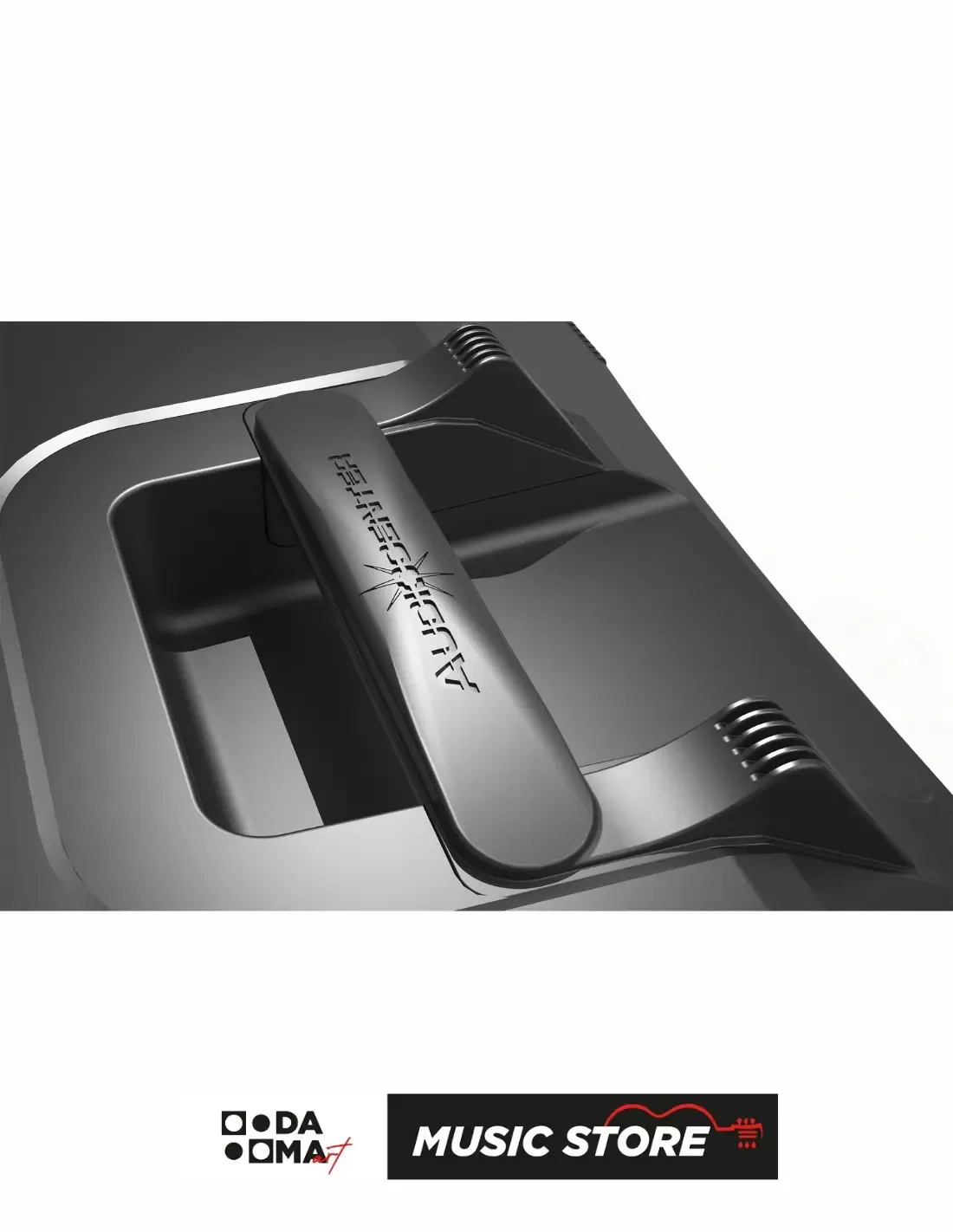

| Handles | 2 side + 1 top |

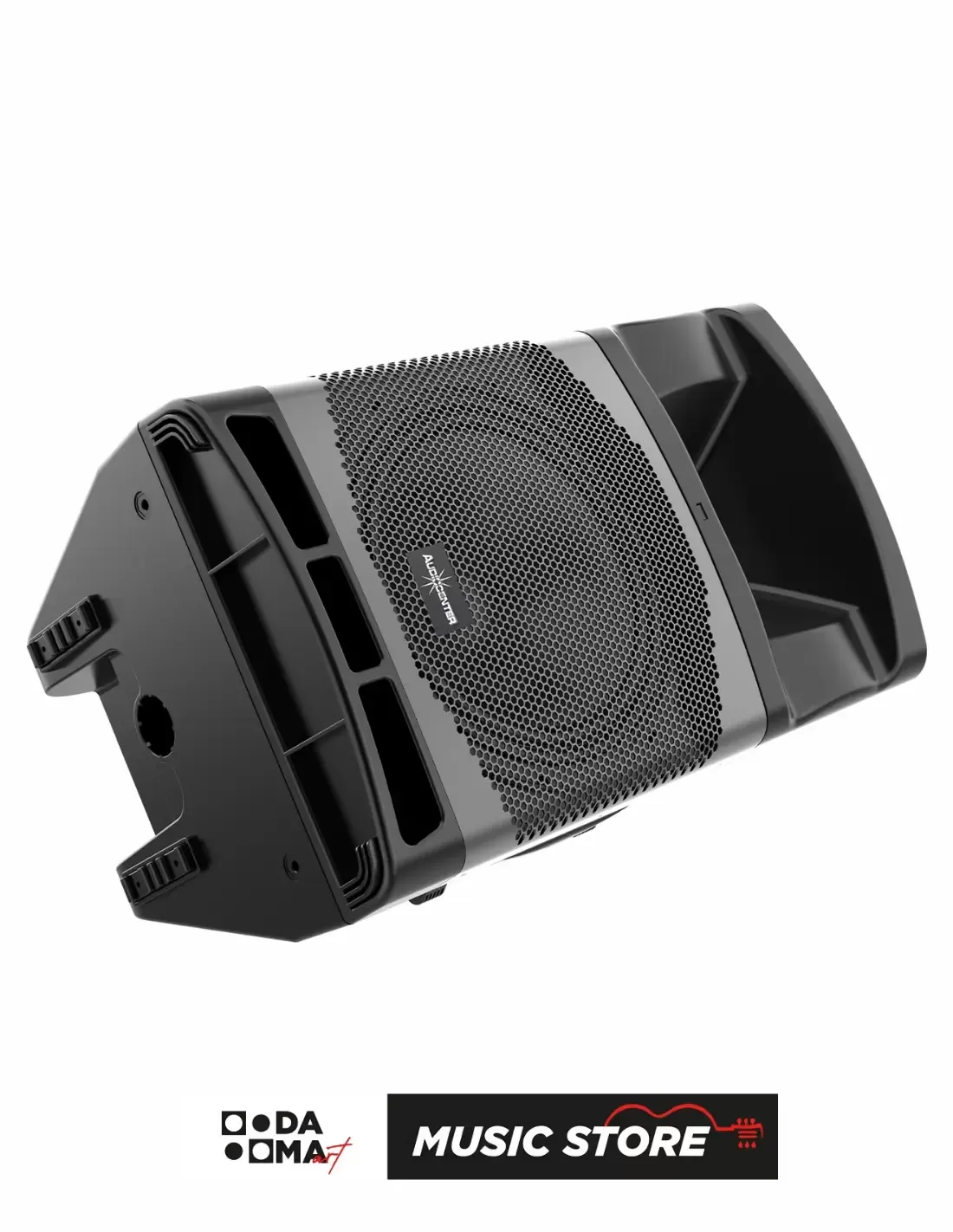

| Mounting Options | 35 mm pole mount, 45° monitor angle, M8 rigging points |
| Dimensions (W×H×D) | 417 × 702 × 426 mm |
| Weight (Net / Gross) | 17.5 kg / 22.5 kg |
| Package Contents | MA15 loudspeaker, power cable, user manual |
